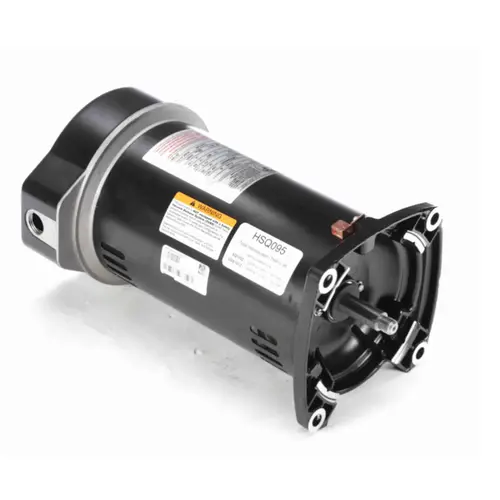

Century HSQ095 .95thp 115/230v 12.2/6.1a 48y Sqfl Motor Satin Black
Item #: HSQ095 by Regal Beloit America Inc
UPC #: 786674033239
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Professional grade
- Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
- PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
- Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
- Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
- 203 Bearings both ends
Diameter
5-5/8 Inch
RPM
3450
Frame
48Y
Type
C
Shipping Dimensions
16.00x9.50x9.25
OverallLength
12.03 Inch
Phase
1-Phase
Department
PUMPS
Bearing Type
Sealed Ball
AmbientTemperature
50 deg C
FinishColor
Satin Black
FrequencyRating
60 Hz
FullLoadAmps
12.2/6.1 A
Item
Pool and Spa Pump Motor
StandardsApprovals
UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
SubBrand
Century®
VoltageRating
115/230 V
EnclosureDesign
Open Dripproof
ThrustHorsepower
0.95
ShaftDesign
Threaded
InsulationClass
B
ShaftMaterial
303 Stainless Steel
ShaftDiameter
5/8 Inch
DutyCycle
Continuous
MotorThermalProtection
Auto
NumberofSpeed
1-Speed
MotorDesign
Capacitor Start
FlangeType
Square
ServiceFactor
1.00
MotorShaftRotation
CCWPE
Ambient temperature
50 degrees Celsius
Frequency Rating (Hz)
60
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Selling Package Depth
9.25
Shaft Design
Threaded
Insulation Class
F
Color
Black
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Flange Type
Square
Bearing Type
Sealed Ball
Motor Capacitor Type
Start
Amps High Speed
12.2
Service Factor
1
Minimum Sell Quantity
1
RPMs Min
3450
Motor Thermal Protection
Automatic Reset
Amps Low Speed
6.1
Voltage
115V,230V
Shaft Diameter
0.625 inch
Motor Frame Size
48Y
Each Product Weight
18.05 pound
Motor Enclosure Type
Open Drip Proof
RPMs Max
3450
Master Carton Quantity
1
Motor Shaft Rotation
Counterclockwise Pulley End
Standards Approvals
CSA Certified
Product Overview
The Century HSQ095 is a 0.95 Total Horsepower (THP), single-speed pool and spa pump motor designed for reliable performance in residential applications. Its 48Y frame with a square flange ensures compatibility with various pump models.
Key Specifications:
Total Horsepower (THP): 0.95Voltage: 115/230VAmperage: 12.2 amps at 115V; 6.1 amps at 230VSpeed: 3450 RPMFrame Type: 48Y with a square flangeService Factor: 1.0Enclosure: Open Drip Proof (ODP)Rotation: Counterclockwise (CCW) at the pump end
Key Specifications:
Total Horsepower (THP): 0.95Voltage: 115/230VAmperage: 12.2 amps at 115V; 6.1 amps at 230VSpeed: 3450 RPMFrame Type: 48Y with a square flangeService Factor: 1.0Enclosure: Open Drip Proof (ODP)Rotation: Counterclockwise (CCW) at the pump end
