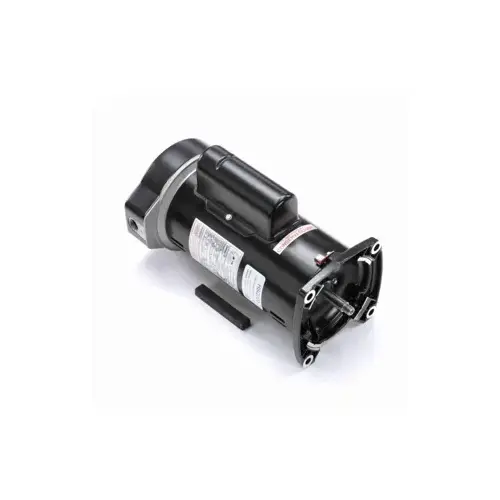

Century HSQ220 Square Flange Pool And Spa Pump Motor 2.20hp 230v Satin Black
Item #: HSQ220 by Regal Beloit America Inc
Brand: Century
UPC #: 786674033260
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Professional grade
- Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
- PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
- Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
- Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
- 203 Bearings both ends
Shipping Dimensions
19.25x11.00x9.25
FlangeType
Square
EnclosureDesign
Open Dripproof
Bearing Type
Sealed Ball
MotorThermalProtection
Auto
Item
Pool and Spa Pump Motor
Diameter
5-5/8 Inch
OverallLength
12.03 Inch
NumberofSpeed
1-Speed
FrequencyRating
60 Hz
FinishColor
Satin Black
ShaftDiameter
1/2 Inch
Type
K
ThrustHorsepower
2.2
InsulationClass
B
ShaftMaterial
303 Stainless Steel
Department
PUMPS
Phase
1-Phase
MotorShaftRotation
CCWPE
ShaftDesign
Threaded
RPM
3450
AmbientTemperature
50 deg C
StandardsApprovals
UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
SubBrand
Century®
Brand
Regal Beloit
ServiceFactor
1.00
FullLoadAmps
9.7 A
Frame
48Y
MotorDesign
Capacitor Start/Run
DutyCycle
Continuous
VoltageRating
230 V
Voltage
230v
Shaft Diameter
0.625 inch
Channel
Construction Channel
Color
Black
Bearing Type
Sealed Ball
Motor Enclosure Type
Open Drip Proof
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Flange Type
Square
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Ambient temperature
50 degrees Celsius
Insulation Class
F
Service Factor
1
Motor Frame Size
48Y
Master Carton Quantity
1
Each Product Weight
29.8 pound
RPMs Min
3450
Motor Capacitor Type
Start,Run
Shaft Design
1/2 Threaded
RPMs Max
3450
Selling Package Depth
9.25
Amps Low Speed
9.7
Minimum Sell Quantity
1
Frequency Rating (Hz)
60
Motor Shaft Rotation
Counterclockwise Pulley End
Amps High Speed
9.7
Standards Approvals
CSA Certified
Motor Thermal Protection
Automatic Reset
Product Overview
The Century HSQ220 is a 2.2 Total Horsepower (THP), single-speed pool and spa pump motor from the Centurion Pro series, designed for durability and efficient performance in residential applications. Its 48Y frame with a square flange ensures compatibility with various pump models.
Key Specifications:
Total Horsepower (THP): 2.2Voltage: 230VAmperage: 9.7 ampsSpeed: 3450 RPMFrame Type: 48Y with a square flangeService Factor: 1.0Enclosure: Open Drip Proof (ODP)Rotation: Counterclockwise (CCW) at the pump end
Key Specifications:
Total Horsepower (THP): 2.2Voltage: 230VAmperage: 9.7 ampsSpeed: 3450 RPMFrame Type: 48Y with a square flangeService Factor: 1.0Enclosure: Open Drip Proof (ODP)Rotation: Counterclockwise (CCW) at the pump end
