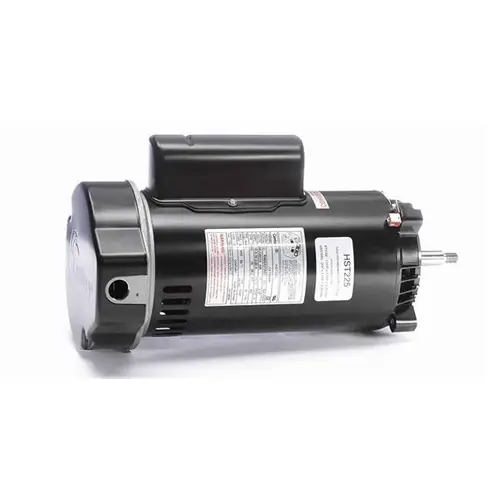

REGAL BELOIT HST225 2.25thp 115/208-230v 56j Odp Threaded Motor
Item #: HST225 by Regal Beloit America Inc
UPC #: 786674070319
In Stock $441.71 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Professional grade
- Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
- PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
- Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
- Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
- 203 Bearings both ends
VoltageRating
115/208-230 V
DutyCycle
Continuous
MotorDesign
Capacitor Start/Run
Frame
56J
FullLoadAmps
20.4/10.9-10.2 A
ServiceFactor
1.00
Brand
Regal Beloit
SubBrand
Century®
StandardsApprovals
UL Approved, CSA Certified
AmbientTemperature
50 deg C
RPM
3450
ShaftDesign
Threaded
MotorShaftRotation
CCWPE
Phase
1-Phase
Department
PUMPS
ShaftMaterial
303 Stainless Steel
MountingType
C-Face
InsulationClass
B
ThrustHorsepower
2.25
HP
2.25
Type
K
ShaftDiameter
5/8 Inch
FrequencyRating
60 Hz
NumberofSpeed
1-Speed
OverallLength
11.84 Inch
Diameter
6-1/2 Inch
Item
Pool and Spa Pump Motor
MotorThermalProtection
Auto
Bearing Type
Sealed Ball
EnclosureDesign
Open Dripproof
Shipping Dimensions
18.25x11.00x9.00
Voltage
115V,208V,230V
Material
303 Stainless Steel
Shaft Diameter
0.625 inch
Application
Pool,Spa
Channel
Construction Channel
Horsepower
2.25 horse power
Color
Black
Bearing Type
Sealed Ball
Motor Enclosure Type
Open Drip Proof
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Ambient temperature
50 degrees Celsius
Insulation Class
B
Service Factor
1
Motor Frame Size
56J
Master Carton Quantity
1
Each Product Weight
31.25 pound
RPMs Min
3450
Motor Capacitor Type
Start,Run
Shaft Design
Threaded
RPMs Max
3450
Selling Package Depth
9
Minimum Sell Quantity
1
Frequency Rating (Hz)
60
Motor Shaft Rotation
Counterclockwise Pulley End
Standards Approvals
CSA Certified
Motor Thermal Protection
Automatic Reset
Century(R) Centurion(R) Pro HST225 Pool and Spa Pump Motor; 2.25 HP, 3450 RPM, 115/208-230 V, 56J, Threaded Shaft
