Pool And Spa Pump Motor 1hp, 208-230/460v Black Lacquer

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

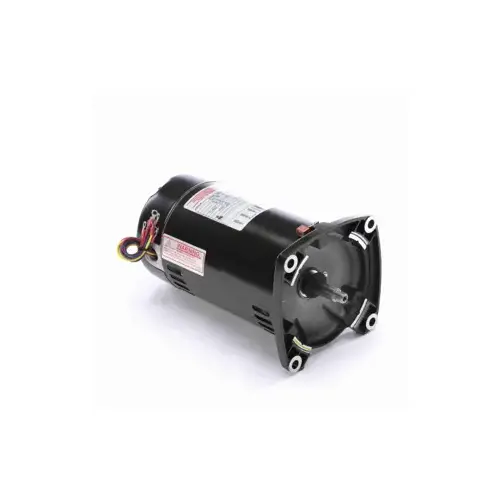

Century Q3102 Pool And Spa Pump Motor 1hp, 208-230/460v Black Lacquer

Item #: Q3102 by Regal Beloit America Inc

UPC #: 786674029270

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$489.43

/each
SAVE UP TO 48.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • All copper windings
  • 1/2-20 UNF-2A RH threaded shaft

VoltageRating

208-230/460 V

DutyCycle

Continuous

Frame

48Y

FullLoadAmps

4.7/2.35 A

ServiceFactor

1.65

Brand

Regal Beloit

SubBrand

Century®

StandardsApprovals

UL Approved, UL Recognized (E46412), CSA Certified (LR43341)

AmbientTemperature

50 deg C

RPM

3450

ShaftDesign

Threaded

MotorShaftRotation

CCWPE

Phase

3-Phase

FlangeMaterial

Aluminum

Department

PUMPS

ShaftMaterial

303 Stainless Steel

MountingType

C-Face

InsulationClass

B

EfficiencyGroup

Standard

ThrustHorsepower

1.65

HP

1

Type

Full-Rated, P

ShaftDiameter

5/8 Inch

FinishColor

Black Lacquer

FrequencyRating

60 Hz

OverallLength

10.88 Inch

Diameter

5-5/8 Inch

Item

Pool and Spa Pump Motor

ShaftLength

5/8 Inch

MotorThermalProtection

None

Bearing Type

Sealed Ball

EnclosureDesign

Open Dripproof

FlangeType

Square

Shipping Dimensions

18.50x9.50x9.25

Product Overview
The Century Q3102 is a 1-horsepower (HP), three-phase pool and spa pump motor designed for reliable performance in various aquatic applications. Its square flange design ensures compatibility with numerous pump models from manufacturers such as Sta-Rite, Red Jacket, and Sears.
Key Specifications:
Horsepower: 1 HPVoltage: 208-230/460VAmperage: 4.7 amps at 208-230V; 2.35 amps at 460VSpeed: 3450 RPMFrame Type: 48Y with a square flangeService Factor: 1.65Enclosure: Open Drip Proof (ODP)Rotation: Counterclockwise (CCW) at the pump end
