1hp 230v 2sp Ee 48y Odp Sqfl Motor Satin Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

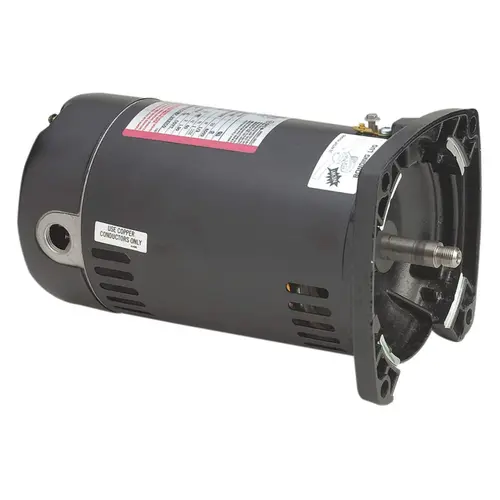

REGAL BELOIT SQS1102R 1hp 230v 2sp Ee 48y Odp Sqfl Motor Satin Black

Item #: SQS1102R by Regal Beloit America Inc

UPC #: 786674031235

See reviewsSee reviews
In Stock

$587.63

/each
SAVE UP TO 58.76

Buying in bulk


QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • High service factor
  • Energy efficient
  • All copper windings
  • 1/2-20 UNF-2A RH threaded shaft

VoltageRating

230 V

DutyCycle

Continuous

MotorDesign

Capacitor Start on Low Speed, PSC on High Speed

Frame

48Y

FullLoadAmps

7.7/2.8 A

ServiceFactor

1.65

Brand

Regal Beloit

SubBrand

Century®

StandardsApprovals

UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008

AmbientTemperature

50 deg C

RPM

3450/1725

ShaftDesign

Threaded

MotorShaftRotation

CCWPE

Phase

1-Phase

Department

PUMPS

ShaftMaterial

303 Stainless Steel

MountingType

C-Face

InsulationClass

B

EfficiencyGroup

Standard

ThrustHorsepower

1.65

HP

1/0.17

Type

Full-Rated, F/C

ShaftDiameter

5/8 Inch

Application

Many Sta-Rite®, Red Jacket, and Sears Jet and Pool Pumps

FinishColor

Satin Black

FrequencyRating

60 Hz

NumberofSpeed

2-Speed

OverallLength

13.81 Inch

Diameter

5-5/8 Inch

Item

Two-Compartment Pool Pump Motor

MotorThermalProtection

Auto

Bearing Type

Ball

EnclosureDesign

Open Dripproof

FlangeType

Square

Shipping Dimensions

21.75x9.50x9.50

Voltage

230v

Shaft Diameter

0.625 inch

Horsepower

1 horse power

Color

Black

Bearing Type

Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Flange Type

Square

Motor Speed

2-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

B

Service Factor

1.65

Commercial, Residential, or Professional

Residential

Motor Frame Size

48Y

Master Carton Quantity

1

Thrust HP

1.65

Each Product Weight

33 pound

RPMs Min

1725

Motor Capacitor Type

Start

Shaft Design

Threaded

Green or Energy Efficient Product

True

RPMs Max

3450

Selling Package Depth

9.5

Amps Low Speed

2.8

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

7.7

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset

Product Overview

Century(R) SQS1102R Square Flange 2-Speed Full-Rated Two-Compartment Pool Pump Motor; 1/0.17 HP, 3450/1725 RPM, 230 V, 48Y, Threaded Shaft
