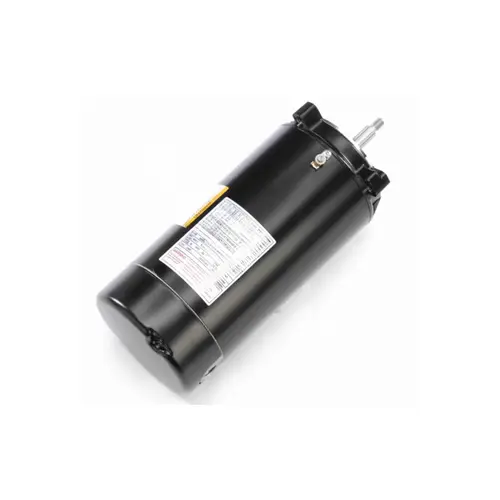

REGAL BELOIT ST1102 1hp 115/230v 56j Odp Threaded Motor Satin Black

Item #: ST1102 by Regal Beloit America Inc

UPC #: 786674031785

See reviewsSee reviews
See reviews summary
In Stock

$726.25

/each
SAVE UP TO 72.63
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 200 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Sealed switch design
  • High service factor
  • 7/16-20 UNF-2A RH threaded shaft

VoltageRating

115/230 V

DutyCycle

Continuous

MotorDesign

Capacitor Start

Frame

56J

FullLoadAmps

18.6/9.3 A

ServiceFactor

1.50

Brand

Regal Beloit

SubBrand

Century®

StandardsApprovals

UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341)

AmbientTemperature

50 deg C

RPM

3450

ShaftDesign

Threaded

MotorShaftRotation

CCWPE

Phase

1-Phase

FlangeMaterial

Aluminum

Department

PUMPS

ShaftMaterial

303 Stainless Steel

MountingType

C-Face

InsulationClass

B

EfficiencyGroup

Standard

ThrustHorsepower

1.5

HP

1

Type

Full-Rated, UAC

ShaftDiameter

5/8 Inch

FinishColor

Satin Black

FrequencyRating

60 Hz

NumberofSpeed

1-Speed

OverallLength

12.13 Inch

Diameter

6-1/2 Inch

Item

Two-Compartment Pool Filter Motor

ShaftLength

2-9/16 Inch

MotorThermalProtection

Auto

Bearing Type

Sealed Ball

EnclosureDesign

Open Dripproof

Shipping Dimensions

18.75x9.00x9.50

Voltage

115V,230V

Shaft Diameter

0.625 inch

Application

Pool

Horsepower

1 horse power

Color

Black

Shaft Length

2.5625 inch

Bearing Type

Sealed Ball

Motor Enclosure Type

Open Drip Proof

P65 Warning

The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Motor Speed

1-Speed

Shaft Material

303 Stainless Steel

Ambient temperature

50 degrees Celsius

Insulation Class

B

Flange Material

Aluminum

Service Factor

1.5

Commercial, Residential, or Professional

Residential

Motor Frame Size

56J

Each Product Weight

25.55 pound

RPMs Min

3450

Motor Capacitor Type

Start

Shaft Design

Threaded

RPMs Max

3450

Amps Low Speed

9.3

Minimum Sell Quantity

1

Efficiency Group

Standard

Frequency Rating (Hz)

60

Motor Shaft Rotation

Counterclockwise Pulley End

Amps High Speed

18.6

Standards Approvals

CSA Certified

Motor Thermal Protection

Automatic Reset

Package Quantity

1

UL Listed

Yes

ADA Compliant

No

UNSPSC

26101112

MADE IN THE USA

No

GSA Approved

No

AbilityOne

No

TAA/BAA Compliant

Yes

Product Overview

Century(R) ST1102 Full-Rated Two-Compartment Pool Filter Motor; 1 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
