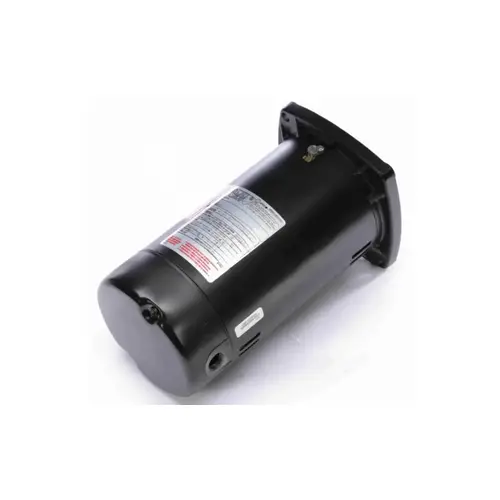

REGAL BELOIT USQ1052 .5hp 115/230v Ur 48y Odp Sqfl Motor
Item #: USQ1052 by Regal Beloit America Inc
UPC #: 786674033222
In Stock $285.58 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Low service factor
- 1/2-20 UNF-2A RH threaded shaft
Diameter
5-5/8 Inch
MotorShaftRotation
CCWPE
ServiceFactor
1.30
FlangeType
Square
MotorDesign
Capacitor Start
NumberofSpeed
1-Speed
EfficiencyGroup
Standard
MotorThermalProtection
Auto
DutyCycle
Continuous
ShaftDiameter
5/8 Inch
ShaftMaterial
303 Stainless Steel
InsulationClass
B
ShaftDesign
Threaded
ThrustHorsepower
0.65
EnclosureDesign
Open Dripproof
VoltageRating
115/230 V
SubBrand
Century®
StandardsApprovals
UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
MountingType
C-Face
Item
Two-Compartment Pool Filter Motor
HP
0.5
FullLoadAmps
9.9/5.0 A
FrequencyRating
60 Hz
FinishColor
Satin Black
AmbientTemperature
50 deg C
Bearing Type
Sealed Ball
Department
PUMPS
Phase
1-Phase
Brand
Regal Beloit
OverallLength
11.13 Inch
Shipping Dimensions
20.00x9.50x9.25
Type
Up-Rated, UAC
Application
Many Sta-Rite®, Red Jacket, Pac Fab and American Products
Frame
48Y
RPM
3450
Voltage
115V,230V
Shaft Diameter
0.625 inch
Horsepower
0.5 horse power
Color
Black
Bearing Type
Sealed Ball
Motor Enclosure Type
Open Drip Proof
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Flange Type
Round
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Ambient temperature
50 degrees Celsius
Insulation Class
B
Service Factor
1.3
Commercial, Residential, or Professional
Residential
Motor Frame Size
48Y
Master Carton Quantity
1
Each Product Weight
15.35 pound
RPMs Min
3450
Motor Capacitor Type
Start
Shaft Design
1/2 Threaded
RPMs Max
3450
Selling Package Depth
9.25
Amps Low Speed
5
Minimum Sell Quantity
1
Efficiency Group
Standard
Frequency Rating (Hz)
60
Motor Shaft Rotation
Counterclockwise Pulley End
Amps High Speed
9.9
Standards Approvals
CSA Certified
Motor Thermal Protection
Automatic Reset
Century(R) USQ1052 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 0.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
