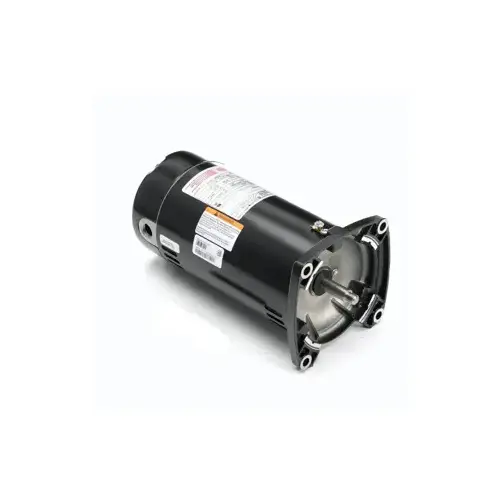

REGAL BELOIT USQ1102 1hp 115/230v Ur 48y Odp Sqfl Motor
Item #: USQ1102 by Regal Beloit America Inc
UPC #: 786674033246
In Stock $329.33 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Low service factor
- 1/2-20 UNF-2A RH threaded shaft
Diameter
5-5/8 Inch
RPM
3450
Frame
48Y
Application
Many Sta-Rite®, Red Jacket, Pac Fab and American Products
Type
Up-Rated, UAC
Shipping Dimensions
19.75x9.25x9.25
OverallLength
12.13 Inch
Phase
1-Phase
Department
PUMPS
Bearing Type
Sealed Ball
AmbientTemperature
50 deg C
FinishColor
Satin Black
FrequencyRating
60 Hz
FullLoadAmps
15.3/7.6 A
HP
1
Item
Two-Compartment Pool Filter Motor
MountingType
C-Face
StandardsApprovals
UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
SubBrand
Century®
VoltageRating
115/230 V
EnclosureDesign
Open Dripproof
ThrustHorsepower
1.25
ShaftDesign
Threaded
InsulationClass
B
ShaftMaterial
303 Stainless Steel
ShaftDiameter
5/8 Inch
DutyCycle
Continuous
MotorThermalProtection
Auto
EfficiencyGroup
Standard
NumberofSpeed
1-Speed
MotorDesign
Capacitor Start
FlangeType
Square
ServiceFactor
1.25
MotorShaftRotation
CCWPE
Voltage
115V,230V
Shaft Diameter
0.625 inch
Horsepower
1 horse power
Color
Black
Bearing Type
Sealed Ball
Motor Enclosure Type
Open Drip Proof
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Flange Type
Square
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Ambient temperature
50 degrees Celsius
Insulation Class
B
Service Factor
1.25
Motor Frame Size
48Y
Master Carton Quantity
1
Each Product Weight
22 pound
RPMs Min
3450
Motor Capacitor Type
Start
Shaft Design
Threaded
RPMs Max
3450
Selling Package Depth
9.25
Amps Low Speed
7.6
Minimum Sell Quantity
1
Efficiency Group
Standard
Frequency Rating (Hz)
60
Motor Shaft Rotation
Counterclockwise Pulley End
Amps High Speed
15.3
Standards Approvals
CSA Certified
Motor Thermal Protection
Automatic Reset
Century(R) USQ1102 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 1 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
