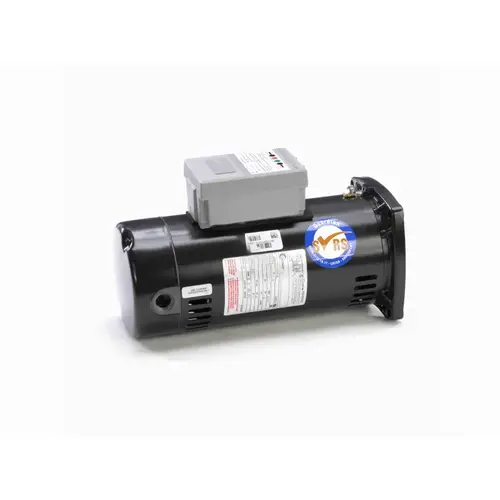

REGAL BELOIT USQG1152A Guardian Square Flange Pool Pump Motor 1.5 Hp 230/115v Satin Black

Item #: USQG1152A by Regal Beloit America Inc

Brand: REGAL BELOIT

UPC #: 786674033307

See reviewsSee reviews
See reviews summary

$465.54

544.46 /each
SAVE UP TO 46.55
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Auto-reset
  • Auto-calibration
  • Economical
  • Easy to install
  • Nerve center (lighting sequence)
  • Run/restart/rest/bypass mode
  • Compatible with all flow rates
  • Improves pool safety
  • Tamper-resistant housing

Diameter

5-5/8 Inch

RPM

3450

Frame

48Y

Application

Safety vacuum release systems and suction lift applications

Type

Up-Rated, UAC

Shipping Dimensions

20.13x9.50x11.00

OverallLength

13.13 Inch

Brand

Regal Beloit

Phase

1-Phase

Department

PUMPS

Bearing Type

Ball

AmbientTemperature

50 deg C

FinishColor

Satin Black

FrameMaterial

Rolled Steel

FrequencyRating

60 Hz

FullLoadAmps

19.2/9.6 A

HP

1.5

Item

Two-Compartment Pool Pump Motor

MountingType

C-Face

StandardsApprovals

UL Approved, CSA Certified, ASME A112.19.17 SVRS

SubBrand

Century®

VoltageRating

115/230 V

EnclosureDesign

Open Dripproof

ThrustHorsepower

1.65

ShaftDesign

Threaded

InsulationClass

B

ShaftLength

1/2 Inch

ShaftMaterial

Stainless Steel

ShaftDiameter

5/8 Inch

DutyCycle

Continuous

ShaftHeight

3-1/4 Inch

MotorThermalProtection

Auto

MotorDesign

Capacitor Start

FlangeType

Square

ServiceFactor

1.10

MotorShaftRotation

CCWPE

Product Overview

Century(R) Guardian(R) USQG1152A Square Flange Up-Rated Two-Compartment Pool Pump Motor; 1.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
