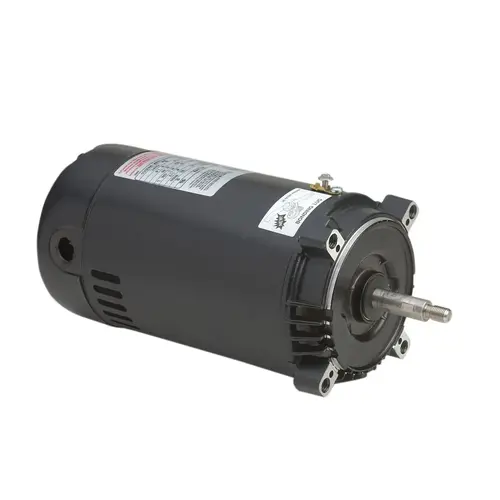

Century UST1072 .75hp 115/230v Ur 56j Odp Threaded Motor Satin Black
Item #: UST1072 by Regal Beloit America Inc
UPC #: 786674033321
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Sealed switch design
- Low service factor
- 7/16-20 UNF-2A RH threaded shaft
VoltageRating
115/230 V
DutyCycle
Continuous
MotorDesign
Capacitor Start
Frame
56J
FullLoadAmps
11.0/5.5 A
ServiceFactor
1.00
Brand
Regal Beloit
SubBrand
Century®
StandardsApprovals
UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341)
AmbientTemperature
50 deg C
RPM
3450
ShaftDesign
Threaded
MotorShaftRotation
CCWPE
Phase
1-Phase
FlangeMaterial
Aluminum
Department
PUMPS
ShaftMaterial
303 Stainless Steel
MountingType
C-Face
InsulationClass
B
EfficiencyGroup
Standard
ThrustHorsepower
0.75
HP
0.75
Type
Up-Rated, UAC
ShaftDiameter
5/8 Inch
FinishColor
Satin Black
FrequencyRating
60 Hz
NumberofSpeed
1-Speed
OverallLength
10.63 Inch
Diameter
6-1/2 Inch
Item
Two-Compartment Pool Filter Motor
ShaftLength
2-9/16 Inch
MotorThermalProtection
Auto
Bearing Type
Sealed Ball
EnclosureDesign
Open Dripproof
Shipping Dimensions
17.25x9.00x9.50
Ambient temperature
50 degrees Celsius
Frequency Rating (Hz)
60
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Selling Package Depth
9.5
Shaft Design
Threaded
Shaft Length
2.5625 inch
Insulation Class
B
Color
Black
Motor Speed
1-Speed
Shaft Material
303 Stainless Steel
Bearing Type
Sealed Ball
Motor Capacitor Type
Start
Amps High Speed
11
Service Factor
1
Efficiency Group
Standard
Application
Pool
Minimum Sell Quantity
1
RPMs Min
3450
Motor Thermal Protection
Automatic Reset
Amps Low Speed
5.5
Voltage
115V,230V
Shaft Diameter
0.625 inch
Motor Frame Size
56J
Flange Material
Aluminum
Each Product Weight
18 pound
Motor Enclosure Type
Open Drip Proof
Horsepower
0.75 horse power
RPMs Max
3450
Master Carton Quantity
1
Motor Shaft Rotation
Counterclockwise Pulley End
Standards Approvals
CSA Certified
Motor Rating
Up-Rated
Commercial, Residential, or Professional
Residential
Product Overview
The UST1072 is a 3/4-horsepower (HP), single-speed, up-rated pool pump motor designed for use in various swimming pool circulation systems. It features a 56J frame with a threaded shaft, making it a compatible replacement for many existing pool pump models from brands such as Hayward, Pentair, and Jacuzzi.
This motor operates on both 115V and 230V power, drawing approximately 14.0 amps at 115V and 7.0 amps at 230V. It runs at 3450 RPM, providing efficient water circulation for pools. The Open Drip Proof (ODP) enclosure allows proper ventilation while protecting internal components from environmental exposure.
The UST1072 is constructed with durable materials, including a stainless steel shaft and sealed ball bearings, which enhance longevity and resistance to corrosion in pool environments. For best performance and to prevent potential leaks, it is recommended to replace the pump shaft seal when installing a new motor.
This motor operates on both 115V and 230V power, drawing approximately 14.0 amps at 115V and 7.0 amps at 230V. It runs at 3450 RPM, providing efficient water circulation for pools. The Open Drip Proof (ODP) enclosure allows proper ventilation while protecting internal components from environmental exposure.
The UST1072 is constructed with durable materials, including a stainless steel shaft and sealed ball bearings, which enhance longevity and resistance to corrosion in pool environments. For best performance and to prevent potential leaks, it is recommended to replace the pump shaft seal when installing a new motor.
