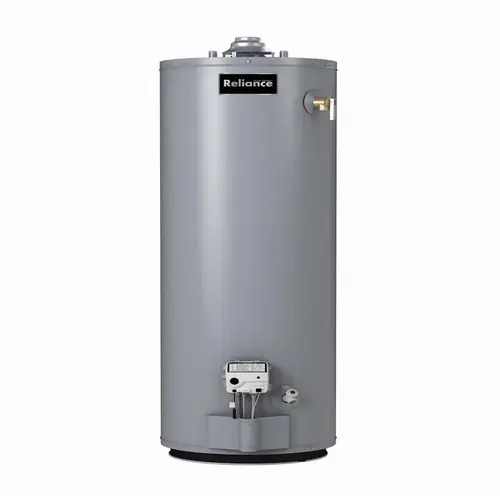

Reliance 6-30-NORBS R Water Heater 30 gal 32000 BTU Natural Gas
Item #: 6-30-NORBS R by RELIANCE WATER HEATER CO.
UPC #: 091193005668
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ships with Insulation Blanket, 1" Non-CFC foam insulation, Not for mobile or manufactured home installation, Factory installed T&P valve, Pex-line water connection nipples. Diffuser-end pex dip tube, Anode rod for tank protection, Glass-lined tank. W
Power Source
Natural Gas
Energy Star Certified
No
Returnable
Yes
Gas Connection Size
1/2"
Minimum Temperature
55 °F
Height
49.94
Defective Code
A
Vent Diameter
3 or 4"
Commercial or Residential
Residential
Water Connection Location
Top
Low NOx Burner
Yes
BTUs
32000 BTU
Width
19.13
Temperature Pressure Relief Valve
Yes
Maximum Temperature
155 °F
Maximum Elevation
10100 ft.
Volts
0 V
Maximum Pressure
150 psi
Water Connection Size
3/4"
Depth
18"
Diameter
18"
Product Type
Water Heater
Tankless
No
Tank Capacity
30 gal
AMPS
0 amps
Warranty
6 yr
CSA Listed
Yes
Each Weight
110.000 LB
Velocity
X
Hazardous Material
No
Alternative UPC
091193065112
Household Size
5 or More People
Product Weight (lb.)
93
First Hour of Delivery (gph)
36
Labor Warranty
1 Year
Minimum Temperature (F)
155
Nominal Tank Capacity (gal.)
30
Part Warranty
Yes
Recovery Rate at 90F Rise (gph)
36
Tank Lining Material
Glass and Steel
Tank Warranty
Yes
Uniform Energy Factor (UEF)
0.58
Water Heater Fuel Type
Natural Gas
Water Heater Profile
Lowboy/Short
Water Heater Vent Type
Standard Atmospheric Vent
Water Heaters Product Type
Water Heater
Country Origin Code
US
Brand
Reliance
Commercial/Residential
Residential
Finish Family
Gray
Gas Type
Natural Gas
Maximum Temperature (F)
91
Product Height (in.)
46.25
Product Length (in.)
46.25
Product Width (in.)
18
Rated Tank Capacity (gallons)
28
Indoor or Outdoor
Indoor
BTU Rating
35500
Length
24.63
Product Overview
Stated Warranty time period applies only to original owner and when installed in a residential single family application, Ace RSC available replacement parts: drain valve Ace 44104, T&P valve Ace 4008611, Pex nipples Ace 40877, N.G. Pilot assembly Ace 4517009, READ and Understand INSTRUCTION MANUAL BEFORE INSTALLATION, NOTE: Dimensions and specifications subject to change without notice in accordance with Reliance Water Heaters policy of continuous product improvement.
