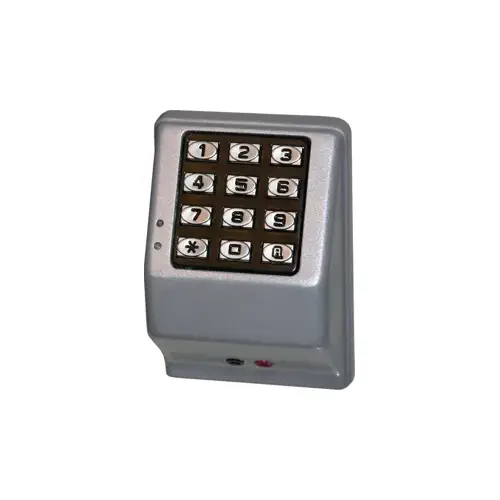

Alarm Lock DK3000 MS DK3000 Series Trilogy T3 Electronic Digital Access Control Keypad, Satin Aluminum Clear Anodized

Trilogy® Weatherproof Keypads12/24VAC/DC digital access keypads with PC programming & audit trail

Electronic digital keypad. Available in keypad onlyand keypad plus prox. Holds up to 2,000 user codes,Master, Management, Supervisor & basic user. 500event schedule, real time clock & 40,000 event audittrail. Prox unit will read most HID cards and keyfobs.

Features:

• 2000 PIN user codes, multilevel securit

• Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag locks or Alarm Lock Remote Release Mag Lock Kit

• Wall mount or single gang box

• 2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real-time schedule

• Vandal-resistant, all metal 12-button keypad

• Keypad or PC programmable

• 40,000 Event audit trail report/print to PC or hand held printer or DTMIII Data Module

• Timed Egress Input – Selectable door open times 3, 10 or 15 seconds

• 500 Scheduled events & real time clock

• Tamper supervised (reportable to alarm system)

• Remote release feature; request-to-exit input

• Weatherproof -31 ̊ to 151 ̊F (-35 ̊ to +66 ̊C)

Specifications: Wall Mount:

• Single gang mounting

Wiring:

• Unit provides flying leads for power, relays, tamper and remote release

I/O Specs:

• 2 form C relays 5AMP minimum contact rating.
• Red and green LED indicators.
• 1 remote release input.
• Sounder and tamper

Power:

• Operating voltage 12-24VAC/DC dield selectable
