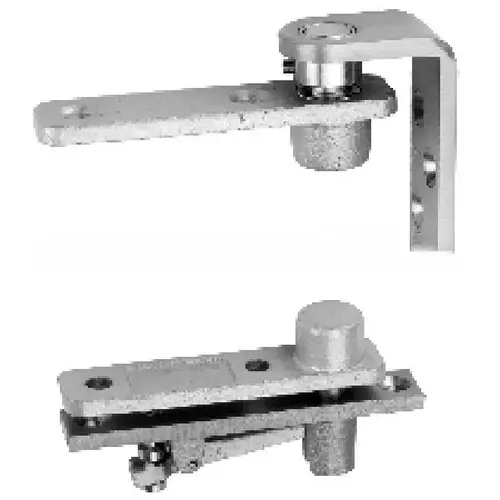

McKinney EP-5J 26D Top Pivot and Socket Set Satin Chrome

Item #: EP-5J 26D by McKinney Hinges

Brand: McKinney

22 reviews
See reviews summary
In Stock

$138.83

140.00 /each
SAVE UP TO 13.88
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Center Hung
  • Mortised Into Side Jamb
  • Non Handed
  • Full Mortise Top Pivot
  • Maximum Door Weight of 125 Pounds

Finish

Satin Chrome

Series

EP Series

Color Code

626/US26D

Product Type

Hinge/Pivot

Finish Description

Satin Chrome

Sub-Series

EP-5J-26D

Manufacturer Parent

Assa Abloy

Fire Rated

No

Function

Top Pivot

Function Family

Hinge/Pivot

Finish Family

Satin Chrome

ADA Compliant

No

Dimension

For 3-1/2" - 8' Doors

Hazardous Material

No

Material

Steel

Hinge Type

Pivot Hinge

Manufacturer Warranty

Limited 1 year warranty

Finish code

US26D

No of inners

1

Application

Double Action

Electronic

No

Mounting Method

Surface Mounted

Pivot Type

Top

Door Thickness Range

1-3/4"

Fasteners

14 x 1-1/2" wood screws and 1/4-20 x 5/8" machine screws

Duty Level

Standard Duty

Product Overview
McKinney EP-5J Jamb Mount Pivot Set

The EP-5J steel jamb mount center hung pivot set is used in conjunction with CSS-9 Combination Strike and Stops and DS-6 Emergency Door Stops and is used for full size doors where mounting a bottom pivot on the floor is not possible or desirable. It's recommended for installations on average frequency doors in public buildings.

  • Used in conjunction with the McKinney CSS-9 and DS-6
  • Thrust steel ball bearing in bottom pivot, oil impregnated bronze bearing in top pivot
  • Center hung
  • Mortised into side jamb
  • For use on double acting doors
  • Full mortise top pivot
  • 1-5/32" radius heel edge of door
  • Maximum Door Weight = 135 lbs.
  • Packed with 14 x 1-1/2" wood screws and 1/4-20 x 5/8" machine screws
RESOURCES & DOWNLOADS

McKinney Full Line Catalog

EP-5J Template
