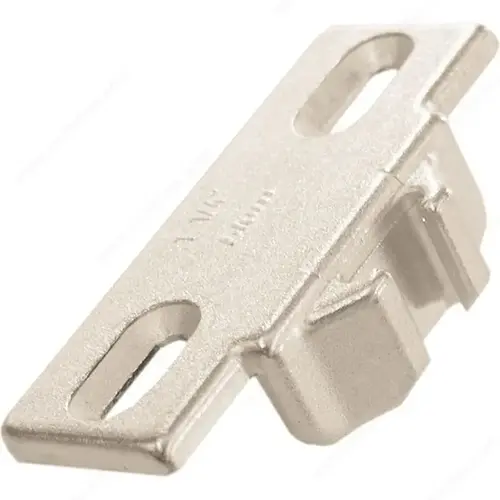

Compact 33 Edge-Mount Mounting Plate, Die-Cast Zinc Material, Full Overlay Door Position, 1-1/4" Overlay, Nickel Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Richelieu Hardware 130113180 Compact 33 Edge-Mount Mounting Plate, Die-Cast Zinc Material, Full Overlay Door Position, 1-1/4" Overlay, Nickel Finish

Item #: 130113180 by Richelieu Hardware

Brand: Richelieu Hardware

See reviewsSee reviews
See reviews summary
In Stock

$5.22

/each
SAVE UP TO 0.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available

Overlay: 1 1/4 in

1 in
1/2 in
1/4 in
1 1/4 in
1 1/8 in
3/4 in

Pack: each

each
pack of 5
pack of 10
pack of 25
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Constructed from die-cast zinc with a nickel finish for use in cabinet and furniture hardware systems.
  • Designed for edge mount applications, providing a stable base for cabinet hinges.
  • Supports full overlay door positions with a 1-1/4" overlay specification.
  • Requires an additional screw for 1-3/8" to 1-5/8" overlay configurations to maintain stability.
  • Installation of the additional screw should occur after height adjustments are finalized.
  • Suitable for standard cabinet and furniture hardware setups requiring edge-mount mounting plates.
  • Designed for compatibility with COMPACT 33 hinge systems in various cabinetry applications.

Finish

Nickel

Material

Die-Cast Zinc

Type

Edge Mount

Overlay

1 1/4 in

Door position

Full Overlay

Packaging Specifications

Not Applicable

Product Overview
The COMPACT 33 Edge-Mount Mounting Plate is a component designed for cabinet hinge systems. Constructed from die-cast zinc with a nickel finish, this mounting plate is intended for use in cabinet and furniture hardware applications. It features an edge mount design and is suitable for full overlay door positions with a 1-1/4" overlay. This mounting plate serves as the base for attaching hinges to cabinet frames, facilitating the movement of cabinet doors. For installations involving 1-3/8" to 1-5/8" overlays, an additional screw is required to maintain stability. This installation step should be performed after all height adjustments have been completed to ensure proper alignment of the door. The mounting plate is a standard part for cabinet door assembly, providing a consistent mounting surface for hinges. It is compatible with standard cabinet construction methods and is designed to be used in conjunction with compatible hinge mechanisms to support the weight and operation of cabinet doors in residential or commercial furniture settings.
