Richelieu Hardware 152126003 CAPSENS - Dimmer for LED 12V and 24V
Item #: 152126003 by Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Height
13/32 in
Diameter
1 31/32 in
Finish
Black
Watts
30 W
Style
Contemporary
Operation
Touch
Lighting Type
LED
Group
LED Group A, LED 24 V dc Exclusive
Width
3/32 in
Features
Dimmable, Touch Function, Round
Mounting
Surface
Bore Hole
1 1/2 in
Control System
Touch
IP
IP44
Tension (V)
24 V, 12 V
Product Overview
Invisible Dimmer Switch!

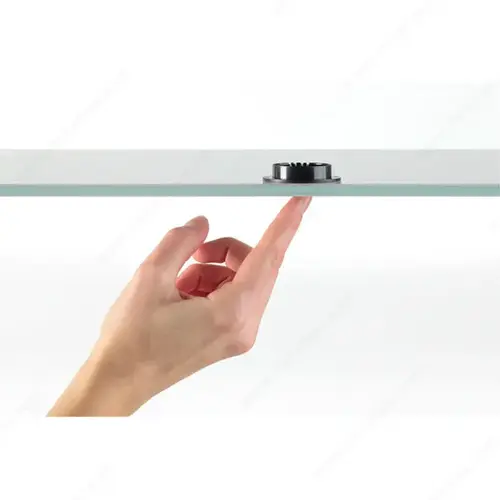

- A hidden electronic touch-sensitive sensor switch designed to be applied to the back side of the surfaces (e.g., wood, plastic, glass, and other opaque or transparent nonmetal materials).
- Operates at a very low safety voltage.
Advantages And Benefits
- Quick touch for on/off, long touch for light intensity (dimmer function).
- Features a memory setting. Once you find your favorite setting and then power down your lights, the next time you turn them on CapsSens will remember your last-used setting.
- Has automatic shutdown after 18 hours of continuous usage, a built-in safety feature.
- Integrated "soft-start" and "soft-stop" function.
Application
CapsSens cannot be installed on metallic surfaces. For other materials, like granite, it depends on the composite materials and it is recommended that you make a preliminary test.
Important Information
- Compatible with 12 V (30 W) and 24 V (60 W) LED devices
- Activation area: approximately 50 mm diameter
- Protection degree: IP44
- To be used with the following materials:
- Wood: maximum thickness of 30 mm
- Plexiglass: maximum thickness of 20 mm
- Glass: maximum thickness of 12 mm
- How it works:
- To switch on/off without making physical contact with the switch but only by touching the surface where it is installed.
To increase or decrease the light intensity (dimming function), press the surface and hold until the right level of light is reached.
- A short flash indicates that CapsSens has reached maximum light intensity.
Included Product(S)
- Capsen dimmer wired for connecting up to 8 lights
Disclaimer
To be installed into non-metallic materials
- A hidden electronic touch-sensitive sensor switch designed to be applied to the back side of the surfaces (e.g., wood, plastic, glass, and other opaque or transparent nonmetal materials).
- Operates at a very low safety voltage.
Advantages And Benefits
- Quick touch for on/off, long touch for light intensity (dimmer function).
- Features a memory setting. Once you find your favorite setting and then power down your lights, the next time you turn them on CapsSens will remember your last-used setting.
- Has automatic shutdown after 18 hours of continuous usage, a built-in safety feature.
- Integrated "soft-start" and "soft-stop" function.
Application
CapsSens cannot be installed on metallic surfaces. For other materials, like granite, it depends on the composite materials and it is recommended that you make a preliminary test.
Important Information
- Compatible with 12 V (30 W) and 24 V (60 W) LED devices
- Activation area: approximately 50 mm diameter
- Protection degree: IP44
- To be used with the following materials:
- Wood: maximum thickness of 30 mm
- Plexiglass: maximum thickness of 20 mm
- Glass: maximum thickness of 12 mm
- How it works:
- To switch on/off without making physical contact with the switch but only by touching the surface where it is installed.
To increase or decrease the light intensity (dimming function), press the surface and hold until the right level of light is reached.
- A short flash indicates that CapsSens has reached maximum light intensity.
Included Product(S)
- Capsen dimmer wired for connecting up to 8 lights
Disclaimer
To be installed into non-metallic materials
