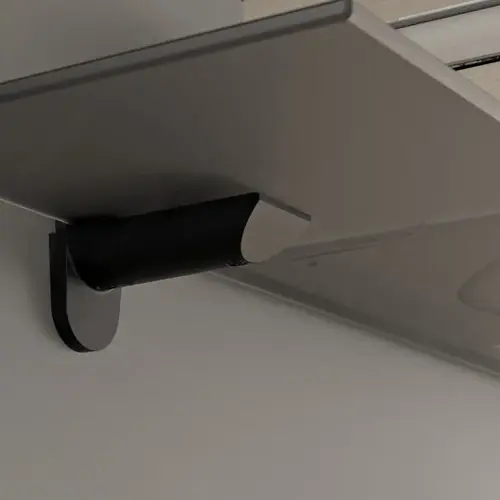

Richelieu Hardware 161022140 Kaiman Glass and Wood Wall Shelf Support Pair
Item #: 161022140 by Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
Rubber, Zinc Alloy
Glass Shelf Thickness
9/32 to 3/4 in
Maximum Shelf Depth
12 5/8 in
Standards and Certifications
RoHS
Color/Finish
Chrome
Height - Overall Dimensions
2 7/32 to 3 13/16 in
Fixing Type
With a screw
Maximum Load Capacity per Shelf
55.1 lb
Projection - Overall Dimensions
4 29/32 in
Width - Overall Dimension
1 23/32 in
Wood Shelf Thickness
23/32 to 1 5/8 in
Product Overview
Large loading capacity - Innovative Design!
Combined wall, bracket, and shelf support for glass and wood shelves.
Advantages And Benefits
- Capable of supporting a 25 kg load each (shelf weight included) for a shelf 320 mm deep.
- Can be adjusted horizontally (up to 3 mm).
- The removable upper part gives the support flexibility: glass shelf thickness goes from 7 mm to 19 mm, while you can install wood shelves from 18 mm to 41 mm thick.
- Can be fixed to various materials: cement walls, plaster boards, wood panels, etc.
- Its satin nickel finish will add a touch of elegance to your room.
- Exclusive to Richelieu.
Application
Can be installed on:
- Cement walls with 8 mm wall plug and 5 x 50 mm pan head screw.
- Plaster board with 8 mm umbrella fitting and M4 x 46 mm pan head screw.
- Wood panels 18 mm thick with specially designed spreading dowel and M6 bolt.
Included Product(S)
screw and cover to fix the shelf/glass INCLUDED. The screws to fix the shelf support to the wall INCLUDED.
Disclaimer
It is the responsibility of the customer:
- To ensure that the wall is of a suitable quality to hold the shelf hardware in place.
- To use the correct hardware fittings as required.
Combined wall, bracket, and shelf support for glass and wood shelves.
Advantages And Benefits
- Capable of supporting a 25 kg load each (shelf weight included) for a shelf 320 mm deep.
- Can be adjusted horizontally (up to 3 mm).
- The removable upper part gives the support flexibility: glass shelf thickness goes from 7 mm to 19 mm, while you can install wood shelves from 18 mm to 41 mm thick.
- Can be fixed to various materials: cement walls, plaster boards, wood panels, etc.
- Its satin nickel finish will add a touch of elegance to your room.
- Exclusive to Richelieu.
Application
Can be installed on:
- Cement walls with 8 mm wall plug and 5 x 50 mm pan head screw.
- Plaster board with 8 mm umbrella fitting and M4 x 46 mm pan head screw.
- Wood panels 18 mm thick with specially designed spreading dowel and M6 bolt.
Included Product(S)
screw and cover to fix the shelf/glass INCLUDED. The screws to fix the shelf support to the wall INCLUDED.
Disclaimer
It is the responsibility of the customer:
- To ensure that the wall is of a suitable quality to hold the shelf hardware in place.
- To use the correct hardware fittings as required.
