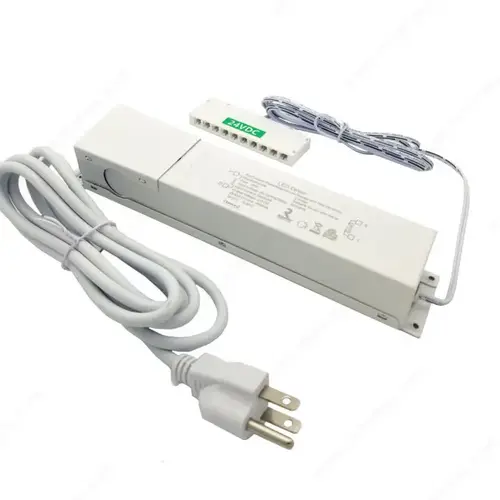

Richelieu Hardware DH2436 Dimmable Power Supply 24 V Hardwire, Metal Material, 36 W Power Supply, 10 Ports Output Port, White Finish
Item #: DH2436 by Richelieu Hardware
Brand: Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from metal with a white finish, this power supply is designed for interior use in dry and damp locations.
- Measures 8-15/32" in length, 2-15/32" in width, and 2" in height, providing a compact form factor for installation.
- Compatible with LED lighting systems, this unit provides a 24 V output and a 36 W power supply capacity.
- Features a forward phase magnetic low voltage design that supports leading edge dimming for adjustable light levels.
- Includes 10 output ports and supports a maximum of 10 fixtures per driver, with a 3 W minimum load requirement.
- Designed for power supply applications in lighting systems, operating on a 90 V ac to 132 V ac input range.
- Includes a 6 ft cable and supports both plug-in and hardwire installation methods, with ETL certification for safety.
Height
2 in
Finish
White
Material
Metal
Length
8 15/32 in
Lighting Type
LED
Power Supply
36 W
Standards and Certifications
ETL
Width
2 15/32 in
Features
Dimmable
Output Port
10 ports
Maximum Fixtures Per Driver
10
Tension (V)
24 V
Product Overview
The Dimmable Power Supply 24 V Hardwire is a LED lighting component designed for use in dry and damp locations. Constructed from metal with a white finish, this power supply provides a 24 V output and a 36 W capacity. It features a forward phase magnetic low voltage design and supports leading edge dimming. The unit includes a 6 ft cable and offers both plug-in and hardwire installation options. It operates within a 90 V ac to 132 V ac range and requires a 3 W minimum load, with a 10% minimum load or higher recommended for optimal dimming. The device includes 10 output ports and supports a maximum of 10 fixtures per driver. The dimensions are 8-15/32" in length, 2-15/32" in width, and 2" in height. This product is ETL certified for safety standards. For interior use only, this power supply is intended for lighting systems where the total wattage does not exceed the recommended capacity. Users should follow the recommended wattage guidelines to prevent potential damage from overloading the power supply. The output ports indicate the number of connections permitted by the adapter included in the box.
