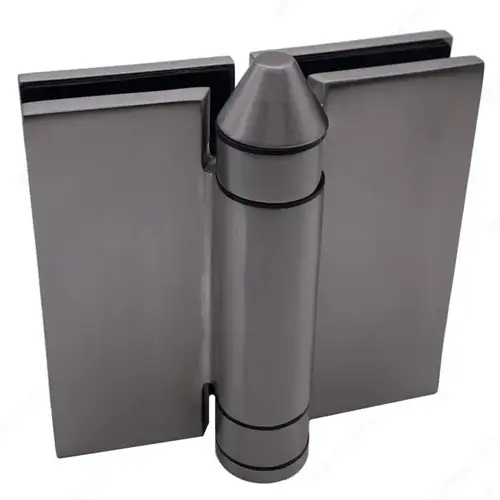

Richelieu Hardware PGHGG180170 Spring-loaded Adjustable 180 degree Glass-to-Glass Pool Hinge
Item #: PGHGG180170 by Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Height
3 15/16 in
Finish
Stainless Steel
Material
stainless steel 316
Length
4 3/16 in
Width
1 9/16 in
Mounting side
Reversible
Glass Drilling
Required
Milling C/C
2 19/32 in
Milling Diameter
5/8 in
Recommended Door Width
Max. 39 3/8 in
Type of Mounting
Glass Mount
Recommended Location Usage
Interior, Exterior
Safety Glass Thickness
13/32 to 15/32 in
Weight Capacity for 2 Hinges
Max. 88.2 lb
Product Overview
Spring closing
Hinge adjustable to 180 degree, designed to open outward and be installed on an adjacent glass panel.
In order to adjust the tension, simply remove the coned cap.
Advantages And Benefits
Gives an exceptionally clear and clear view for any outdoor space.
Ideal for the security fence around a swimming pool.
Resistant to water and weather.
Application
Used in all manner of glass balustrade projects.
Installed on adjacent glass panels.
Glass drilling is necessary for installation.
Important Information
Using a spring-loaded hinge along with a magnetic latch maximizes security and reduces water access.
These components help prevent drowning, but do not replace close monitoring.
Disclaimer
For safety purposes, use tempered glass.
The use of power tools during installation may damage the hinges and decorative hardware.
The glass must be shaped according to the instructions provided in the box.
Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Maintenance: clean with a soft cloth and non-abrasive soap or ammonia.
This illustration is provided for visual reference only. Actual product may differ from the illustration.
Order hardware before starting the job.
Always use the instructions inside the package since the manufacturer reserves the right to change product and information without notice.
Drawings and technical documents contain examples of hardware from different manufacturers. The customer may in no case make a claim following the use of these documents. The Company disclaims any responsibility for the structural details related to a construction or project.
Installation must be done by qualified personnel.
The preceding information as well as any technical recommendation given in writing, verbally or based on tests is provided to the best of our knowledge However, recommendations are non-binding and do not diminish your responsibility for determining the correctness of these recommendations and the suitability of the product for your particular purpose.
The application, use or processing of our products as well as the production of products based on our technical recommendations are beyond our control and therefore exclusively your responsibility.
Sales of our products are subject to our most recent General Sales and Delivery Conditions. Please note that Richelieu will not accept any returns or claims for unpackaged products.
