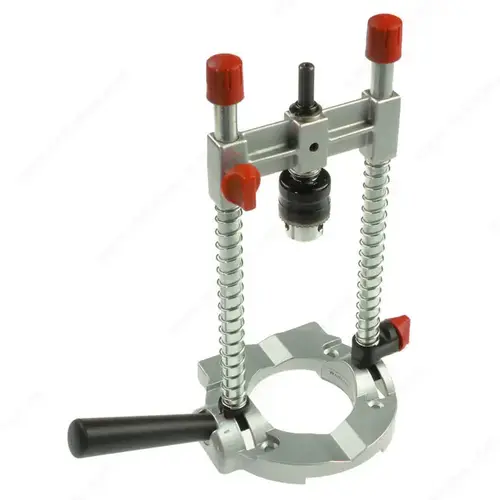

Richelieu Hardware R77229 Multi-Angled Drill Guide
Item #: R77229 by Richelieu Hardware
Brand: Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Height
2.75 in
Finish
Zinc
Material
Metal
Length
14.2 in
Width
6.13 in
Type of Jig
For Knob/Pull Installation, For Shelving Installation, For Hinge Installation, For Slide Installation, For Mounting Plate Installation
Brand
Richelieu
Product Overview
Faster, more accurate centering and angle drilling up to 45 degrees
3/8 in (9.53 mm) Jacobs drill chuck included.
Spring-loaded drill adapter slides up and down easily on guide bars.
Adjustable depth stop for exact depth drilling.
Handle adds more controls for variety of applications.
Advantages And Benefits
Multi-Angled Drill Guide ensures that holes are drilled straight and true at angles up to 45 degree.
Spring-loaded drill adapter slides up and down on guide bars for drilling accuracy.
Adjustable depth stop easily sets required drilling depth with a maximum drilling depth of 6 in (152.4 mm).
Important Information
V channel in the base securely holds round objects up to 3 in (76.2 mm) in diameter for accurate drilling.
Included Product(S)
Unit includes a 3/8 in (9.52 mm) Jacobs drill chuck.
3/8 in (9.53 mm) Jacobs drill chuck included.
Spring-loaded drill adapter slides up and down easily on guide bars.
Adjustable depth stop for exact depth drilling.
Handle adds more controls for variety of applications.
Advantages And Benefits
Multi-Angled Drill Guide ensures that holes are drilled straight and true at angles up to 45 degree.
Spring-loaded drill adapter slides up and down on guide bars for drilling accuracy.
Adjustable depth stop easily sets required drilling depth with a maximum drilling depth of 6 in (152.4 mm).
Important Information
V channel in the base securely holds round objects up to 3 in (76.2 mm) in diameter for accurate drilling.
Included Product(S)
Unit includes a 3/8 in (9.52 mm) Jacobs drill chuck.
