Richelieu Hardware WEBKIT1248868Click To Copy SLIDE 50 Sliding Door System

Concealed low profile soft-close mechanisms
The SLIDE 50 sliding cabinet wood door system has a concealed low profile for inset applications with a door weight capacity of 110 lb (50 kg) each.
Features:
- For wood doors 3/4" (18 mm) to 1 in (25 mm) thick
- Concealed low-profile soft-close mechanisms
- Rollers are equipped with anti-derailment springs
- Select from two recessed track lengths: 78 1/4" (1.99 m) and 117 5/8" (2.99 m)
- Simple and flexible installation
IMPORTANT: The minimum door width with a soft-close mechanism is 27 1/2" (700 mm).
Cut a groove for the track 19/32" (15 mm) wide x 15/32" (12 mm) deep. Use metric dimensions for greater accuracy during installation.

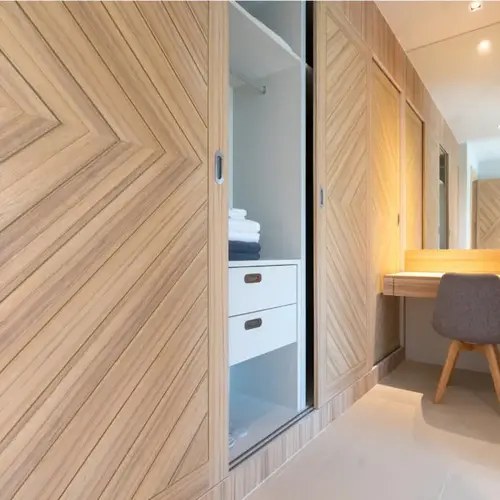

This is an ideal solution for office furniture, bookcases/libraries, kitchen cabinets, closets, wardrobes/armoires, and other millwork applications.
Advantages And Benefits
- Concealed low-profile soft-close mechanisms
- Rollers are equipped with anti-derailment springs
- Select from two recessed track lengths: 78 1/4" (1.99 m) and 117 5/8" (2.99 m)
- Simple and flexible installation
Important Information
- IMPORTANT: The minimum door width with soft-close mechanism is 27 1/2 in (700 mm).
- Use metric dimensions for greater accuracy during installation.
- Please make sure to read the entirety of the installation manual before proceeding with the installation.
- Wear safety gear such as gloves, safety glasses, safety shoes, and ear protection.
- Every fastener used to attach the track to the wall must be fastened securely into a structural surface.
- Always remove debris/dust/residues (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
- Never spray lubricant on this product.
- Do not exceed stated limitations and parameters. This will cause early wear and performance failure.
Disclaimer
Pictures provided for visual reference only: actual product may vary.
- All required hardware should be ordered and obtained prior to initiating fabrication or installation work. Please verify that the parts and quantities listed in your order are correct before proceeding to checkout.
- Always use instructions provided by the manufacturer, as included with the product. Manufacturer reserves the right to amend, modify, or otherwise supplement any previously issued product and/or technical information, as deemed required from time to time, without prior notice.
- The documentation, drawings, and instructions on this page apply to the system described on this page only. Richelieu expressly declines all responsibility for any design or construction that combines this system with systems from this same manufacturer or systems from other manufacturers.
- Installation of the product shall be executed by qualified individuals only, always ensuring that each product is securely installed using proper fixation methods, as appropriate for each applicable substratum. We trust that anyone installing these products has the required skills, knowledge, and experience. Richelieu expressly disclaims any liabilities for results obtained through improper use or installation.
