Richelieu Hardware XULT39WBVT Vertical Wall Bed Unit with Spring Mechanism & Self-deploying Legs
Item #: XULT39WBVT by Richelieu Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Static Load Rating
1323 lb
Slat Thickness
3/8 in
Mattress Size
Single (39 in x 75 in)
Interior Dimensions Required - Width
42 3/4 in
Interior Dimensions Required - Depth
16 1/8 in
Mattress Thickness
7 3/32 in
Interior Dimensions Required - Height
81 1/8 to 82 1/8 in
Dynamic Load Rating
154 lb
Designer
G.Manzoni
Cabinet Panel Thickness
3/4 in
Width
40 1/8 in
Slat Width
2 5/8 in
Length
76 in
Opening
Vertical
Finish
Grey
Product Overview

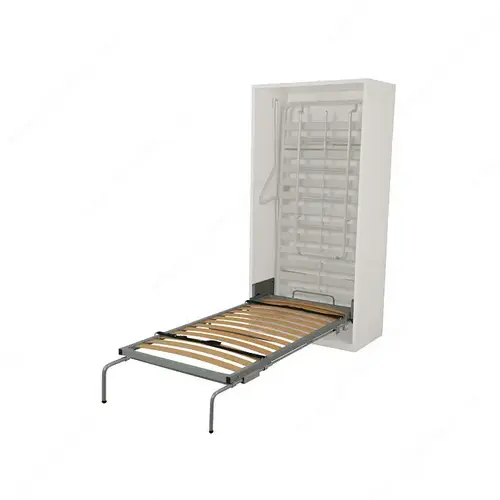

Vertical wall bed mechanism with a full steel structure, wooden slats, and an self-deploying leg. It comes with a spring and piston mechanism and integrated locking system. This is the ideal wall bed mechanism for a daily sleeping solution.
Advantages And Benefits
This unit includes a system that locks the bed in the open position for increased safety. Can be used in small rooms to economize space. Legs deploy automatically when the mechanism is opened, requiring less effort. When the mechanism is closed, the legs fold themselves. The slats are made of six layers of bent, pressure-laminated birch that provide firm support. Just one SKU for all parts!
Included Product(S)
Bed frame, mechanism plates and mounting screws, pistons, automatic legs, tube ( 16 mm with threaded pin), panel mounting plate, hardware, mattress bracket.
***The cabinet is NOT included and must be built by the customer.***
Important Information
XULT39WBVT Box: 40.15 in x 36.61 in x 3.93 in
(1 m x 93 cm x 10 cm)
Weight: 66.13 lb (30 kg)
XULT54WBVT Box: 55.11 in x 32.67 in x 3.93 in
(1.4 m x 83 cm x 10 cm)
Weight: 88.18 lb (40 kg)
XULT60WBVT Box: 61.02 in x 81.10 in x 3.93 in
(1.55 m x 2.06 m x 5 cm)
Weight: 99.20 lb (45 kg)
**Packaging fees will be applied for this product. For more information, please contact customer service.
