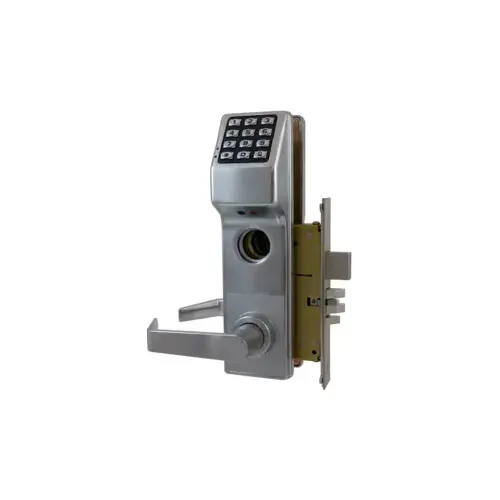

Alarm Lock DL3500DBR US26D DL3500 Series Trilogy High Security Mortise Deadbolt Audit Trail Digital Lock, Satin Chrome
Item #: DL3500DBR US26D by Alarm Lock
See reviewsSee reviews
In Stock
$1,215.39
/eachSAVE UP TO 121.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Supports 300 3-6 Digit PIN Codes
- 300 User codes: Master, manager, supervisor & basic users
- Multi-Level User Codes and One-Time Service Codes
- Fingertip or Windows PC-programmable
- Free Passage, Group or Total Lock-Out Codes
- Real time clock enables up to 500 scheduled events and holiday schedules
- Vandalproof All-Metal Keypad
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Typical 100,000 Cycle Battery Life
- Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
- 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- 40,000 event audit trail log
- 500 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Program data transferred to lock via AL-PCI2 or AL-DTMIII
- 5AA battery-pak operated; 75,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Finish
Satin Chrome
Function
Entry
Series
DL3 Series
Design
Digital Keypad
Handing
RH
Strike
1-1/4" x 4-7/8" Strike
Backset
2-3/4 Inch
Grade
ANSI/BHMA Grade 1
Power
Battery Pack
Color Code
626/US26D
Door Thickness
1-5/8 to 1-7/8 Inch
Cylinder Type
Mortise
Fire Rated
3 Hours {A}
Package Height
4.875"
Package Length
13"
Package Volume
728.8125
Package Width
11.5"
Number of users
300
Keypad Type
Electronic
Lock Platform
Mortise Deadbolt
Package Qty
1
Programmer
Optional
Reader Technology
Keypad Only
Software
Optional
Special Marks
Fire rated 3 Hours {A}
Strike Type
Mortise
Base Material
Brass or Bronze
Finish Description
Satin Chrome
Keyblank Grouping
SCHL-C-6-1
Product Type
Electronic Cylindrical Lock
Keyway
Schlage C
Keying Charges
CCAM
Hand
Right Hand
Warranty
2 Year
Operating Temperature
-31 to 151°F
Latch Throw
3/4 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(5) AA Alkaline Batteries
Strike Size
1-1/4" x 4-7/8"
Lever Projection
1 Inch
Standards
BHMA Certified; UL Listed; FCC Certified
Function Family
Digital Lock
Features
Weatherproof; ANSI A115 Series Prep; 12-Button Metal Keypad; 300 User Codes; 40000 Audit Trail; 500 Scheduled Lock/Unlock Events; Battery 75000 Cycles; Programmable Relay; Quick Passage Mode; Low-Battery Alert; Fingertip/Windows PC-Programmable
Manufacturer Parent
Napco Security Technologies
Sub-Series
DL3500DBR-26D
Voltage
5 AA
Options
Clover Leaf Cam
Cylinder Included
Yes
Access Type
Keypad, Standalone
Alternate Part Number-1
122881
Finish code
US26D
Latch Bolt Type
Deadbolt, Deadlatch
Lock Category
Mortise, Mortise Lock
Latch Bolt Throw
1in, 3/4in
Product Overview
DL3500 Series Mortise LocksTrilogy Electronic Digital Mortise Locks
Electronic battery operated digital mortise lock. Holdsup to 300 codes, Master, Management, Supervisor & basic user. 500 event schedule, real time clock & 40,000 event audit trail.
Features:- 300 User codes: Master, manager, supervisor & basic user
- Fingertip or Windows PC-programmable
- Real time clock enables up to 150 scheduled events and holiday schedules
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Choose either classroom or deadbolt versions and left or right hand-ing (If reverse hand is required, lock is field reversible.)
- 1 3/8" (3.5 cm) mortise cylinder supplied card enrollment mode al-lows many cards to be quickly added without PC –also– download-able from PC or prox enroller tool
- 40,000 event audit trail log
- 150 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Fits 1 5/8" to 1 7/8"
- 2 3/4" standard
- 1 1/4" x 4 7/8" strike included
- Specify RH or LH when ordering. Lock is reversible in the field.
- 5 AA alkaline batteries (included)
- All metal, 12 button. All functions programmed through keypad
- Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes
- Steelcase lock body meets BHMA specifications for Grade 1 locks UL Listend 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- Classroom function features stainless steel latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt function features stainless steel deadbolt with 1" (2.55cm) projection, latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt may be projected from key cylinder from outside door or turn-piece from inside door.
- 1 3/8" (3.5cm) mortise cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5 - 3.8cm) mortise cylinder.
- Classroom function supplied with straight cam. Deadbolt function supplied with cloverleaf cam. Cams for other manufacturer's cylinder are available.
- 26D - Satin Chrome
- 10B - Oil Rubbed Dark Bronze
