3/4" Offset Pivot Set. Left Handed. Standard-Duty. Up to 600 lbs, Door Width up to 48". Satin Chrome

Roll over image to zoom in

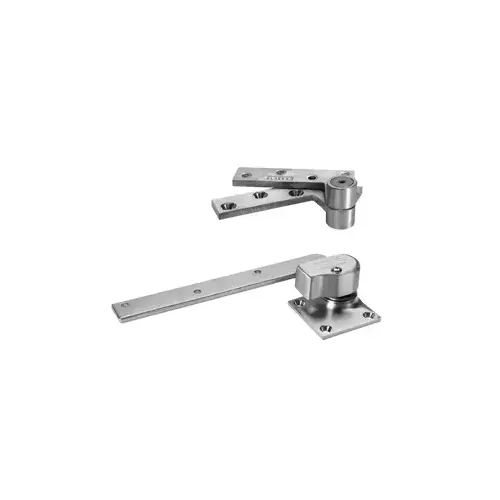

Rixson 147 626 LH 3/4" Offset Pivot Set. Left Handed. Standard-Duty. Up to 600 lbs, Door Width up to 48". Satin Chrome

Item #: 147 626 LH by Rixson

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$772.55

/each
SAVE UP TO 77.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features

Alternate Part Number-1

172711

Handing

Left Hand

Finish

Satin Chrome

Hinge Type

Pivot Hinge

Hazardous Material

No

Finish code

626

No of inners

1

Product Overview

Rixson Model 147 Offset Pivot Set

FEATURES

  • Standard top pivot 180 included
  • M19 intermediate pivot required (order separately)
  • Bottom pivot mounts directly to floor
  • Uses same arm and cap as 27 floor closer
  • Available for fire door assemblies up to three hours (ferrous material) – specify F147. Intermediate pivot required by UL. Specify FM19 (order separately)
  • For 20-minute label suffix –20 to the part number
  • Non-ferrous base material
  • Doors 60in (1524mm) to 90in (2286mm) in height should use one intermediate pivot. Each additional 30in (762mm) of door height warrants another intermediate pivot
  • 3/4in (19mm) offset (measured from centerline of pivot to face of door)
  • Available for 1-1/2in (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
  • Door edges must be beveled 1/8in in 2in
  • Furnished with wood and machine screws
  • Extended spindles available in 1/2in (13mm) increments up to 2in (51mm) longer than standard
  • Doors will swing 180°, trim permitting
  • APPLICATION

  • Exterior or Interior Doors
  • Weight to 600 lbs.
  • Door Width up to 4'0" (1219mm)
  • Handed
  • Standard-Duty Pivot Set
