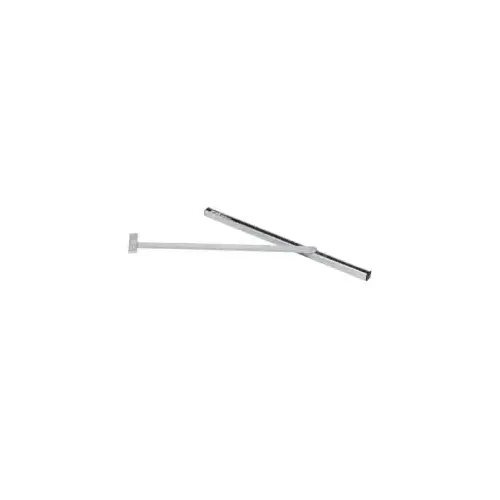

Rixson 2336613 Concealed Adjustable Standard Duty Stop Oil Rubbed Bronze Finish
Item #: 2336613 by Rixson
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Oil Rubbed Dark Bronze
Grade
ANSI/BHMA Grade 1
Function
Stop Only
Finish Description
Oil Rubbed Dark Bronze
Product Type
Door Closer/Holder/Stop
Series
2 Series
For Door Thickness
1-3/4 Inch
Product Size
3
Hold Open-Stop Range
110°
Manufacturer Parent
Assa Abloy
For Use With
Interior Doors
Sub-Series
2-336-613
ADA Compliant
No
Mounting Type
Concealed
Application
Interior Doors; Doors May be Single or Double Acting
Door Opening
30-1/16" to 36" (Butt/Offset Pivots), 32-1/16" to 38-1/2" (Center Hung)
Jamb Bracket Length
3 Inch
Function Family
Overhead Door Stop
Mount
Concealed
Standards
ANSI/BHMA A156.8 Grade 1
Door Size
30-1/16 Inch to 38-1/2 Inch
Features
Slide Track Design; Degree of Opening is Fully Adjustable and can be Adapted to Changing Needs; Durable Slider Cam and Shock Block
Color Code
613/US10B
Jamb Bracket Height
3/4 Inch
Jamb Bracket Width
3/16 Inch
Included Components
5012-PKG (Adapter kit)
Finish Family
Dark Bronze
Product Overview
For interior doors. Single or double acting. Adjustable. Recommended for moderate traffic medium weight doors. Slide track design. Durable slider cam and shock block. 3/4 square channel. Multi-function unit is shipped as a stop. Can be converted to a hold-open or friction in the field (5012-PKG adapter kit included). Complete screw packet kit for installation in wood or metal door and frame. Door Opening Size (in inches) for Model Number 2-246 Butts/Offset Pivots 24-1/16 - 30 Center Hung Pivots 27 - 32
