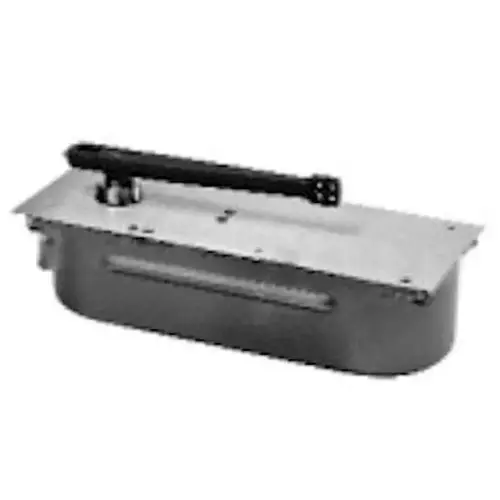

Rixson 40A-90-626 40 Series Heavy Duty Floor Closer, Satin Chrome
Item #: 40A-90-626 by Rixson
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 1
Function
Automatic Hold Open
Finish Description
Satin Chrome
Product Type
Door Closer/Holder/Stop
Series
40 Series
Floor Plate Width
6-1/8 Inch
Manufacturer Parent
Assa Abloy
Closer Application
Center Hung
Delayed Action
false
Closer Swing Degree
90 Degree
Handing
Non-Handed
Closer Arm Type
Center Hung, Automatic Hold Open
Maximum Door Weight
300 lbs.
Cover Plate Length
17-1/4 Inch
Hand
Non-Handed
Closer Hold-Open Degree
90 Degree
Sub-Series
DC_Floor_Closers_rixson_23
Fire Rated
No
Maximum Door Width
4 Foot
ADA Compliant
No
Closer Arm Thickness
3/16 Inch
Mounting Type
Center Hung
Application
Exterior or Interior Doors
Floor Plate Length
17-1/4 Inch
Function Family
Hold Open Door Closer
Mount
Floor Mount
Standards
ANSI/C06012; ANSI/BHMA A156.4
Backcheck
true
Spindle Size
3/4 Inch
Closer Action
Double Acting
Hold-Open Type
Automatic Hold Open
Cover Plate Width
6-1/8 Inch
Features
Adjustable Closing Speed Valves for Each Direction of Door Swing; Mechanism Returns Door to Center
Color Code
626/US26D
Cement Case Width
6-1/16 Inch
Cement Case Material
Steel Cement
Maximum Door Load
300 lbs
Closer Hold-Open
true
Warranty
10 year limited warranty
For Door Width
Up to 4' x 8' 6" (1219 x 2591mm)
Cement Case Height
4-1/16 Inch
Cover Plate Thickness
3/32 Inch
Included Components
340 Standard Top Pivot
Finish Family
Satin Chrome
Product Overview
For interior or exterior doors. Weight up to 300 lbs and door sizes up to 4'0 x 8'6. Centering arm with adjustment screws in face of door (critical for double acting). Adjustable closing speed valves for each direction of door swing. Mechanism returns door to center. Auxiliary door stop required overhead or floor type. Available with floor plate or theshold installation. Steel cement case. Standard top pivot #340 included. Not allowed for fire-rated doors. Furnished with wood and machine screws. The Dark Oxidized Satin Bronze equivalent (613E) finish provides the richness and warmth of the 613 'living' finish but maintains its original color and appearance and will not fade or wear over time. ANSI/C06012
