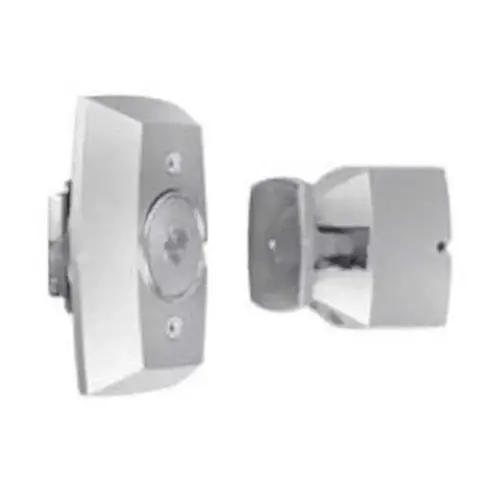

Rixson 998M-696 Electromagnetic Door Holder/Release, Satin Brass Painted
Item #: 998M-696 by Rixson
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Brass Painted
Function
Recessed Wall Mount
Mount
Wall Mount
Finish Description
Satin Brass Painted
Product Type
Electromagnetic Holder/Release
Series
990 Series
Manufacturer Parent
Assa Abloy
Product Width
2-5/8 (Door Mount Component) Inch
Sub-Series
DC_Electromagnetic_Holders_Releases_rixson_7
ADA Compliant
No
Mounting Type
Wall
Product Height
4-5/8" (Wall Mount Component); 7/32" (Door Mount Component)
Standards
ANSI/C00011
Voltage
12 VDC
Distance From Wall To Door
3-5/8 Inch
Product Projection
3-5/8 Inch
Features
Concealed Wiring
Holding Force
30-40 lbs.
Product Length
2-3/4 Inch
Warranty
2 Year Limited Warranty
Finish Family
Brass
Product Overview
Electromagnetic door holder/releases are designed for virtually any remote door release applications. They must be used in conjunction with closing devices. Fire/smoke barrier doors - Door releases when tripped by an alarm or smoke detector. Private offices - Door releases when triggered by a remote switch. All devices come with a wall/floor portion and a door portion (armature). Circuit normally closed. Door portions have screws and plates to accommodate surface and concealed mounting. Wall must be properly reinforced and outlet box adequately fastened. Total projection 3-5/8 Mounting requirements 2 x 4 x 1-3/4 oulet box. Tri-voltage - 120VAC 24VAC/DC 12VDC. ANSI/C00011
