Features
Finish
Dark Oxidized Satin Bronze
Handing
RH
Function
Intermediate Pivot
Finish Description
Dark Oxidized Satin Bronze
Product Type
Hinge/Pivot
Series
19 Series Pivot
Product Width
5 Inch
ADA Compliant
No
Finish Family
Dark Bronze
Product Material
Ferrous Material
Standards
ANSI C07321/C07371
Function Family
Hinge/Pivot
Features
Not Load-Bearing; Aids in Installing Floor Closers and Bottom Pivots; Doors 60" to 90" in Height Should Use One Intermediate Pivot; Each Additional 30" Warrants Another Intermediate Pivot; Door Edges Must be Beveled in 1/8" in 2"
Application
Maintains Door Alignment; Fire Door Assemblies
Hand
Right Hand
Fire Rated
Yes
Manufacturer Parent
Assa Abloy
Sub-Series
HP_Pivots_rixson_23
Electronic
No
Door Handing
Handed
Mounting Method
Center Hung
Pivot Type
Intermediate
Substrate Type
Non-ferrous
Fasteners
Torx Screws Optional
Pivot
3/4" Offset
Duty Level
Heavy Duty
Hang Type
Offset Hung
Fire Rated Time
3 hours

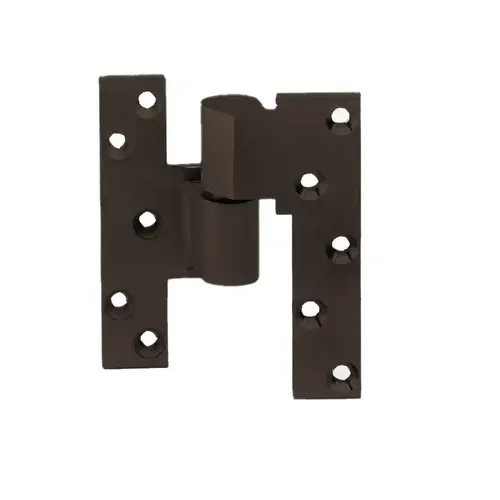

Product Overview
Not load-bearing. Ferrous base metal for fire-door assemblies. Maintains door alignment. Aids in installing floor closers and bottom pivots. Door edges must be beveled 1/8 in 2. Doors 60 to 90 in height should use one intermediate pivot. Furnished with wood and machine screws. The Dark Oxidized Satin Bronze equivalent (613E) finish provides the richness and warmth of the 613 "living" finish but maintains its original color and appearance and will not fade or wear over time. ANSI/C07321/C07371
