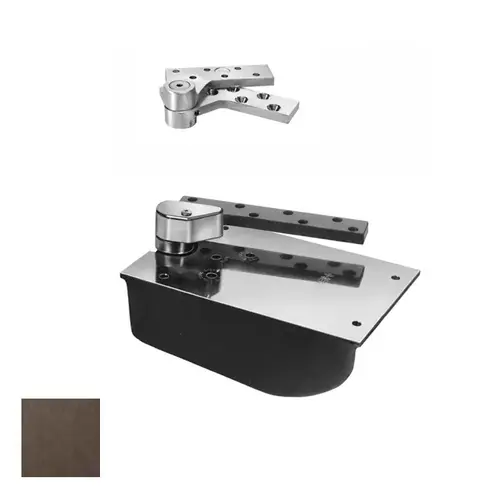

L27 Series Heavy Duty Floor Closer, Dark Oxidized Satin Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Rixson L27S-LH-105-613E L27 Series Heavy Duty Floor Closer, Dark Oxidized Satin Bronze

Item #: L27S-LH-105-613E by Rixson

See reviewsSee reviews
See reviews summary

$2,949.57

/each
SAVE UP TO 294.96
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Dark Oxidized Satin Bronze

Grade

ANSI/BHMA Grade 1

Type

For Lead-Lined Doors

Handing

LH

Function

Selective Hold Open

Finish Description

Dark Oxidized Satin Bronze

Product Type

Door Closer/Holder/Stop

Series

27 Series

ADA Compliant

No

Finish Family

Dark Bronze

Included Components

L180 Top Pivot

Spindle Size

3/4 Inch

Standards

ANSI/BHMA A156.4; UL Listed

Closer Arm Type

3/4" Offset, Selective Hold Open

Hold-Open Type

Selective Hold Open

Maximum Door Load

1500 lbs

Function Family

Hold Open Door Closer

For Door Width

Up to 4' (1219mm)

Closer Action

Single Acting

Features

Additional Thrust Bearing for Greater Load Capacity; Built-In Positive Dead Stop Prevents Door from Swinging Beyond the Desired Opening Degree

Mounting Type

3/4" Offset

Application

Exterior or Interior Doors; Lead-Lined Doors; Heavy Doors; High Traffic Doors

Warranty

10 year limited warranty

Cement Case Height

9-13/16 Inch

Cement Case Width

5-7/8 Inch

Closer Application

3/4" Offset Hung

Backcheck

true

Manufacturer Parent

Assa Abloy

Closer Hold-Open

true

Delayed Action

false

Floor Plate Length

9-7/8 Inch

Cover Plate Width

6-1/8 Inch

Floor Plate Width

6-1/8 Inch

Cover Plate Length

9-7/8 Inch

Closer Swing Degree

105 Degree

Cover Plate Thickness

3/32 Inch

Cement Case Material

Cast Iron Cement

Closer Hold-Open Degree

105 Degree

Sub-Series

DC_Floor_Closers_rixson_29

Mount

Floor Mount

Maximum Door Weight

450 lbs.

Maximum Door Width

4 Foot

Hand

Left Hand

Product Overview
For exterior or interior doors. Weight up to 1500 lbs and door width up to 4'0. Standard top pivot #L180 included and ML19 intermediate pivot required (order separately). Heavy-duty bottom arm and top pivot with screw holes spaced to straddle lead lining. Additional thrust bearing for greater load capacity. Built-in positive dead stop prevents door from swinging beyond the desired opening degree. Separate and independent valves for closing speed latch speed and backcheck. Available with floor plate or threshold installation. Cast iron cement case. Vertical door adjustment. Furnished with wood and machine screws. The Dark Oxidized Satin Bronze equivalent (613E) finish provides the richness and warmth of the 613 "living" finish but maintains its original color and appearance and will not fade or wear over time. ANSI/C06071
