This Rixson Model 28 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
NOTE: CRL is a stocking Rixson Specialty Door Control Distributor. If you need Rixson products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed are:253000Floor Closer Cement Case284720RHCloser Cover282026Bottom Center-Hung Arm340Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

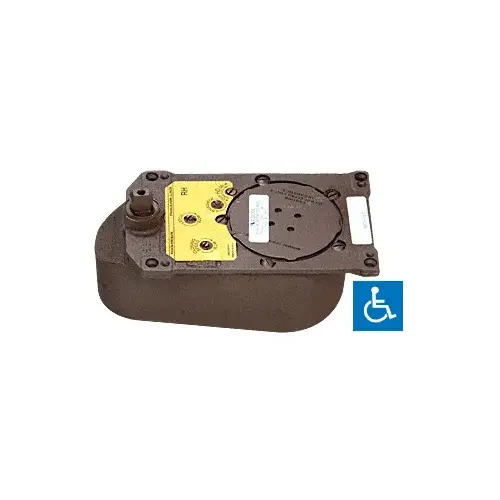

Rixson PH2890SH0RH85 Model PH28 8.5 Lb. Center-Hung 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Right Hand
Item #: PH2890SH0RH85 by Rixson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Built-in Positive Dead Stop
- For Exterior or Interior Doors Weighing Up to 350 Lbs. (158 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
Handing
Right Hand
Type
90 Degree Selective Hold Open
Brand
Rixson
Door Height
102
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Type
Floor Closer
Series
28
Independent Closing and Latching Valves
Yes
Selective Hold Open (On Off)
Yes
Built In Positive Dead Stop
Yes
Adjustable Hydraulic Backcheck
Yes
Recommended Door Type
Aluminum, Hollow Metal
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Closer Body Only
Yes
Interior Or Exterior Doors
Yes
Maximum Weight Center Hung
350 Pounds
Non Stocked Parts and Acessories Special Order
Yes
Americans with Disabilities Act (ADA) Compliant
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
48 Inches
Body Length
11-1/8
Body Height
4-1/16
Body Width
5-7/8
Spring Size
8.5
UL Listed
Yes
Door Opening
90
Selective Hold Open
Yes
Product Overview
This Rixson Model 28 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
NOTE: CRL is a stocking Rixson Specialty Door Control Distributor. If you need Rixson products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed are:253000Floor Closer Cement Case284720RHCloser Cover282026Bottom Center-Hung Arm340Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
