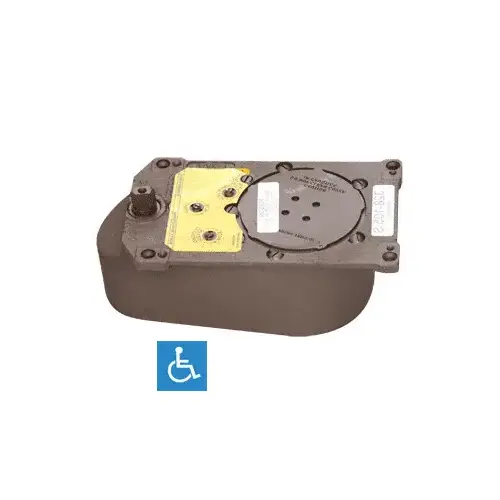

Rixson PH328105SH0R85 PH328 Series 8.5 Lbs. Center-Hung Right Hand 105 Degree Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Item #: PH328105SH0R85 by Rixson
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Physically Handicapped 8.5 lbs. Opening Force for Compliance with ADA Accessibility Requirements
- Selective On or Off Hold-Open
- Tapered Spindle Design Intended for use with Patch Fittings
Handing
Right Hand
Type
105 Degree Selective Hold Open
Brand
Rixson
Door Height
96
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Type
Floor Closer
Independent Closing and Latching Valves
Yes
Selective Hold Open (On Off)
Yes
Built In Positive Dead Stop
Yes
Adjustable Hydraulic Backcheck
Yes
Recommended Door Type
Patch Fittings
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Closer Body Only
Yes
Interior Or Exterior Doors
Yes
Maximum Weight Center Hung
325
Non Stocked Parts and Acessories Special Order
Yes
Patch Fitting Usage
Yes
Americans with Disabilities Act (ADA) Compliant
Yes
Maximum Door Width - Exterior
38 Inches
Tapered Spindle Design
Yes
Maximum Door Width - Interior
38 Inches
Body Length
11-1/8
Body Height
4-1/16
Body Width
5-7/8
Spring Size
8.5
UL Listed
Yes
Door Opening
105
Selective Hold Open
Yes
This Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Optional accessories that may be needed are:
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
.
