Rixson Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
FEATURES AND SPECIFICATIONS:
Single Acting, Handed
Selective Hold Open (SHO) Stocked
Separate and Independent Valves for Closing Speed, Latching Speed, and Backcheck Adjustments
Built-in Positive Dead Stop Prevents the Door From Swinging Beyond the Opening Degree Specified. (Stock 90 and 105 )
"PH" Models Meet ANSI A117.1 Physically Handicapped 8.5 Lb. A.D.A. Opening Force
350 Lb. (159 kg), 48" (1.22 m) Width Capacity.
Furnished with Wood and Machine Screws

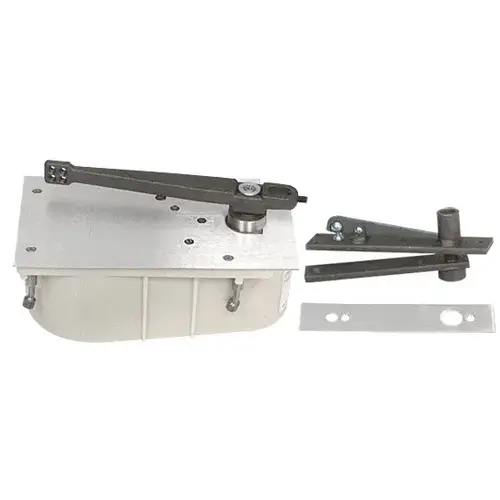

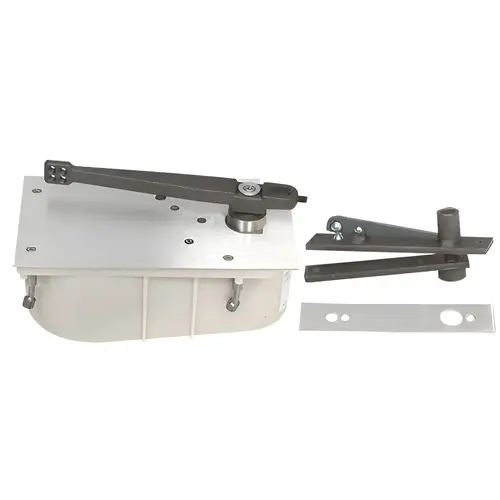

CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot
The following components are included to complete the job:
253000Floor Closer Cement Case
284720RHCloser Cover
282026Bottom Center-Hung Arm
340Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- 10 Year Limited Warranty
- 350 Lb. (159 kg) Capacity
- Adjustable Backcheck
- ANSI 156.4 Grade 1
- Built-In Positive Dead Stop
- For Exterior or Interior Doors
- Selective Hold Open Feature
- UL Listed
Type
90º Selective Hold Open
Handing
Left Hand
Brand
Rixson
Finish
Satin Chrome
UL Listed
Yes
Door Opening
90
Includes
253000, 284720LHSC, 282026SC, 340SC
Door Height
102
Certification
ANSI 156.4 Grade 1
Closer Type
Floor Closer
Finish/Color
Satin Chrome
Selective Hold Open (On Off)
Yes
Built In Positive Dead Stop
Yes
Recommended Door Type
Aluminum, Hollow Metal
Similar
J990NHON, CRL9040AS, CRL9040CB, CRL9040TB, CRL9040AS, J580BS
Interior Or Exterior Doors
Yes
Maximum Weight Center Hung
350 Pounds
Adjustable Back Check
Yes
Replacement Parts
253000, 284720LHSC
Special Order
Non Stocked And Accessories
Body Length
11-1/8
Body Height
4-1/16
Body Width
6-1/8
Selective Hold Open
Yes
Product Overview
Rixson Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
FEATURES AND SPECIFICATIONS:
CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot
The following components are included to complete the job:
253000Floor Closer Cement Case
284720RHCloser Cover
282026Bottom Center-Hung Arm
340Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
