Door Type Offset Pivots/Hinges
30-1/16" to 36" (764 to 914 mm)
Door Type Center-Hung Pivots
32-1/16" to 38" (814 to 965 mm)
- ANSI 156.8 Grade 1
- For Exterior or Interior Doors
- Multi-Function Hold Open or Stop Only
- Non-Handed
- Protects Door and Entryway
- Surface Mounted for New or Retrofit Installations

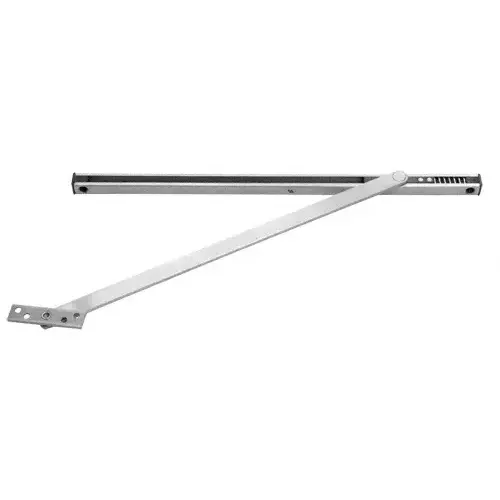

Rixson® Overhead Stops and Holders are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110 Degrees. Furnished with fasteners for both wood or metal door and frame.
NOTE: Standard 10 Series Overhead Stops and Holders are shipped for Push Side Mounting. For Pull Side Mounting, Order Cat. No. 5258 Optional Mounting Bracket.
FEATURES AND SPECIFICATIONS:Non-Handed – Slide Track Design
Multi-Function Slider for Field Selection of Hold Open, Friction Stay or Stop Only
Degree of Opening Fully Adjustable – 110 Degree Maximum Opening
Heavy Shock Absorber Spring Provides 5º to 7º Compression Before Reaching a Dead-Stop
Non-Metal Slide and Shock Block
Furnished with Fasteners for Both Wood or Metal Door and Frame
Recommended for Medium Traffic, Medium Weight Doors
