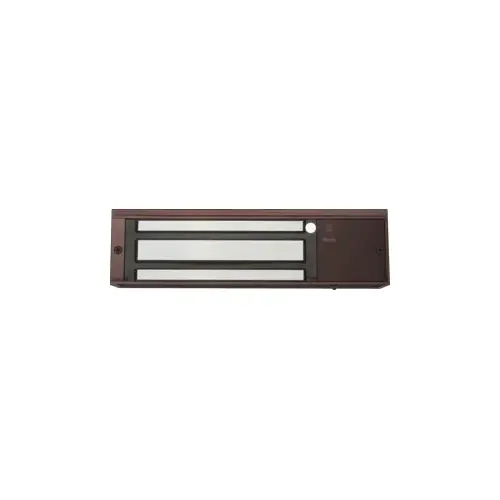

Rofu Security International 8612BD US28 1200lb 12/24VDC Single Magnetic MBS DSS UL Satin Chrome

Item #: 8612BD US28 by Rofu Security International

See reviewsSee reviews

$401.62

/each
SAVE UP TO 40.16

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

117127

Voltage

12V DC, 24V DC

Options

Bond Sensor, LED Status

Holding Force

1500 lbs

Finish code

US28

Mounting

Surface Mount

Fail Status

Fail Safe

Maglock Type

Double Monitored, Single Door

Product Overview

ROFU 8011-002 Single Door Double Monitored Magnetic Door Lock

1500lbs holding force / With Bi-Colored LED (Bond Sensor and Door Status are Standard)Includes bond sensor monitoring thru PCB and a secondary reed switch monitoring for true door status!

FEATURES

  • Holding Force: 1500lbs
  • 12/24 vdc (adjustable by moving jumpers over the 4 pins on the PC Board)
  • Specifications:415 mA @ 12vdc / 215 mA @ 24vdc
  • Dimensions:
    • Magnet: 10-1/2" x 2-5/8" x 1-5/8"
    • Armature Plate: 7-1/4" x 2-3/8" x 5/8"
  • Fail Safe: Releases instantly when power is disconnected
  • Fail Alarm: May be released upon activation of fire alarm
  • No residual magnetism
  • Bond Sensor: Built in hall effect crystal affected by door position, voltage input and magnetic field strength
  • Door Status: Reed switch imbedded into the magnetic block works with a permanent magnet in the armature plate to provide true secondary door status.This DS is not fed through the PCB and does not require power to send the door status
  • LED: Bi-Colored Red/Green door status is attached to magnet housing which works with Bond Sensor
  • Available in US28 or US40
  • Housing: Attractive, heavy duty anodized extruded aluminum housing, no need for a cover
  • Mounting Hardware included with each unit, for out-swinging doors
  • Optional brackets required for in-swinging doors and special installations can be found in accessories.
  • Limited Lifetime Warranty on the Magnetic Block and a 18 Month Warranty on the PC Board.

    • FINISHES

  • US28
  • US40
