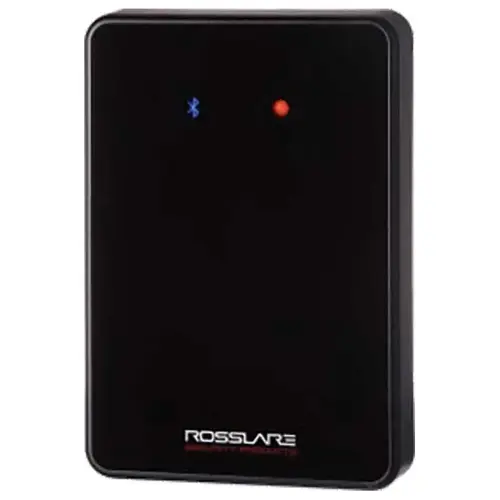

Rosslare AY-H6255BT Ingress/Egress Control
Item #: AY-H6255BT by Rosslare
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Voltage
8 to 16 VDC
Mounting Type
US Gang Box
Application
General Purpose Access Control Applications
Warranty
5 Year Limited Product Warranty
Operating Temperature
-31° to 150°F
Function
Ingress/Egress Control
Product Height
3 Inch
Product Width
4.4 Inch
Read Range
NFC Up to 7 cm (2-3/4 in.); Bluetooth BLE 4.1 Connection Up to 12 m ( 39 ft) Open Air
IP Rating
IP65
Product Depth
0.7 Inch
Standards
CE; EN ISO 13485; ROHS Compliant
Indoor or Outdoor Use
Outdoor; Indoor
Peak Current
185 mA
Features
NFC-ID is Supported With Rosslare APP-A415 NFC-ID Credential App for Android in Host Card Emulation Mode; BLE-I-ID is Supported With Rosslare BLE-ID Credential Apps for iOS, Android Os; Easy Installation
Product Type
Access Control Part/Accessory
Manufacturer Parent
Rosslare Enterprises Ltd
System Interfaces
Wiegand/OSDP
Technologies Supported
Bluetooth + MIFARE; DESFIRE; NFC; Iclass (CSN)
Average Current
110 mA
Resistant Properties
Weather Resistant; UV Resistant
Cable Distance
5 m
Sub-Series
AY-H6255BT
