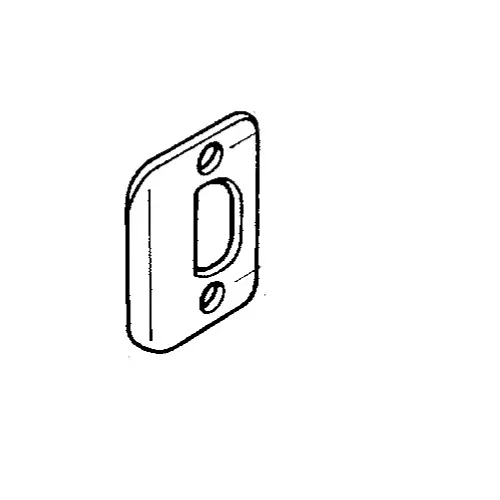

Falcon Q001048605 Strikes, Bright Polished Brass

B SeriesGrade 2, medium-duty cylindrical lever locks

When you need a tough, reliable lock at the right price point for a retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series lock options include an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.

Features:

• All lever designs meet ADA requirements

• Heavy wrought brass or bronze roses over steel through-bolted rose inserts

• UL Listed 3 hour

• Cylinder housings and plugs machined from solid brass

• Brass or cold-formed steel construction with zinc dichromate plating for rust resistance

Product specifications: ANSI/BHMA:

• Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:

• Listed for 3-hour fire door, A label.

Functions:

• 10 commercial functions available.

Finishes:

• Available in BHMA 605, 606, 613, 625, and 626.

Door thickness:

• 1 3/8" to 2" standard. See price book for exceptions on communicating lock functions.

Backset:

• 2 3/4" standard.

Mechanism:

• Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:

• Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.

Handing:

• Locks are non-handed.

Cylinders:

• Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified.Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways:

• "G" keyway standard on conventional cylinders. "A" keyway standard on SFIC cylinders.

Trim:

• Roses are 3 1/2" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers no inserts) material finished to match mating parts.

Latches:

• 1/2" bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8" backset with 2 1/4" x 1" latchfaces, 2 3/4" backset with 2 1/4" x 1 1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.

Strikes:

• 4 7/8" x 1 1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Screws:

• Furnished with combination screws for use in wood or metal doors and frames.

Architectural specifications:

Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:

• All locks shall meet the ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.

• Locksets shall be UL Listed 3-hour, A Label.

• Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.

• Roses shall be 3 1/2" diameter.

• All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.

• Locksets shall adjust to fit door thickness from 1 3/8" to 2".

• All locksets shall be non-handed and not require field disassembly for re-handing.

• Preparation for door must be non-handed.

• Acceptable manufacturer: Falcon lock
