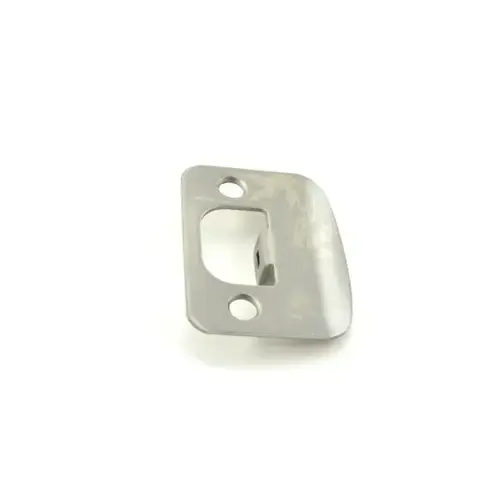

Falcon Q001048626 Strikes, Satin Chrome
Item #: Q001048626 by Falcon
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Solid Production
- Ideal for a Specific Use
- Certified Schlage Parts
- Mounting Hardware Included
- Limited 1 Year Warranty
Product Class
Commercial
Configuration
Curved Lip, Full Lip
Function
Strike
Corners
Round Corner
Approved for Commercial Use
Yes
Height
2.25
Center to Center
1.625
Lip to Center
1 Inch
Finish
Satin Chrome
Design
Radius
Finish Description
Satin Chrome
Product Type
Lock Part/Accessory
Product Length
2-1/4 Inch
Product Width
1-5/8 Inch
Strike Type
ANSI
ADA Compliant
No
Corner Type
Radius
Finish Family
Satin Chrome
Strike Size
1-5/8" x 2-1/4"
Hole Center to Center
1-5/8 Inch
Function Family
Part/Component
For Use With
T Series, X Series, B series Falcon Locks
Color Code
626/US26D
Manufacturer Parent
Allegion
Sub-Series
PA_Locks_Parts_falcon_20
When you need a tough, reliable lock at the right price point for a retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series lock options include an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.
Features:- All lever designs meet ADA requirements
- Heavy wrought brass or bronze roses over steel through-bolted rose inserts
- UL Listed 3 hour
- Cylinder housings and plugs machined from solid brass
- Brass or cold-formed steel construction with zinc dichromate plating for rust resistance
- Certified ANSI/BHMA A156.2, Series 4000, Grade 2.
- Listed for 3-hour fire door, A label.
- 10 commercial functions available.
- Available in BHMA 605, 606, 613, 625, and 626.
- 1 3/8" to 2" standard. See price book for exceptions on communicating lock functions.
- 2 3/4" standard.
- Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
- Locks are non-handed.
- Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified.Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
- "G" keyway standard on conventional cylinders. "A" keyway standard on SFIC cylinders.
- Roses are 3 1/2" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers no inserts) material finished to match mating parts.
- 1/2" bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8" backset with 2 1/4" x 1" latchfaces, 2 3/4" backset with 2 1/4" x 1 1/8" latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
- 4 7/8" x 1 1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
- Furnished with combination screws for use in wood or metal doors and frames.
Key-in-lever cylindrical locksets shall be Falcon B Series or equal and meet the following requirements:
- All locks shall meet the ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets.
- Locksets shall be UL Listed 3-hour, A Label.
- Lever trim shall have individual heavy-duty springs for lever return and to prevent lever sag. Trim shall be through-bolted with screws coated with thread sealant to provide strength and resistance to loosening.
- Roses shall be 3 1/2" diameter.
- All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements.
- Locksets shall adjust to fit door thickness from 1 3/8" to 2".
- All locksets shall be non-handed and not require field disassembly for re-handing.
- Preparation for door must be non-handed.
- Acceptable manufacturer: Falcon lock
