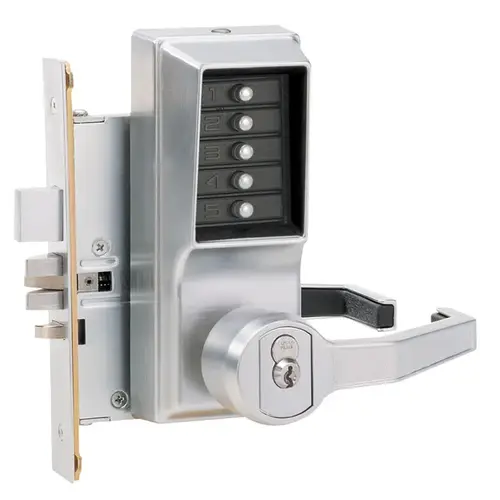

Kaba Access RR8146S-26D-41Click To Copy 8100 Series Mechanical Pushbutton Mortise Lever Lock x RHR Satin Chrome

Simplex ®8100 SeriesMortise Lock

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex 8100 Mechanical pushbutton lock, with mortise locking device options and lever handle, provides exterior access by combination, while allowing free egress.

Features: Access Control:

• Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

No Battery:

• Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes:

• Single access code—one easy-to-manage code for all users

Programming:

• Lock is easily programmed via keypad without removing lock from the door

Handing:

• Factory-handed; not field reversible

Economical:

• A cost effective access control solution

Operation Modes:

• Pushbutton Access

• Passage (select models)—allows access without using the lock entrycode. Feature activated from the inside with a thumbturn or key (included with all passage feature models).

• Deadbolt (select models)—added security of 1" deadbolt. Accesspermitted by combination or key override.

• Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted usingkey override.

Mechanical Features: Construction:

• Cast front housing; unified trim plate; fixed ADA—compliant levers

Locking Device Options:

• Mortise with 1" (25 mm) deadbolt, 3/4" (19 mm) two-piece anti-friction latch
• Mortise with 3/4" (19 mm) two-piece anti-friction latch

Numeric Keypad:

• Vandal resistant, solid metal pushbuttons

Handing:

• Factory-handed; not field reversible

Standard Finishes:

• Antique Brass 05 (609)
• Satin Chrome 26D (626)

Optional Finishes:

• Bright Chrome 026 (625)
• Bright Brass 03 (605)

Backset:

• 2 3/4" (70 mm)

Latch:

• 3/4" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt

Minimum Stile Recommended:

• 5" (127 mm)

Weight:

• 9.8 lbs. (3.7 kg)

Strike:

• 4 7/8" (124 mm) L x 1 1/4" (32 mm) W x 1/4" (6 mm) D Deadbolt/Latch mortise strike plate

Key Override: Interchangeable Cores:

• Small format—Best and equivalents (6 or 7-pin length); core not included

Removable Cores:

• Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length),Corbin Russwin (6-pin length),Schlage, and Sargent; core not included

Installation: Door Preparation:

• Easily installs on wood or metal doors. Standard (86) mortise preparation

Door Thickness:

• 1 3/4" (44 mm) to 2 1/4" (57 mm)

Items Supplied Include:

• Lock assembly, installation manual, full-scale template, combination change tool, and required installation hardware

Certification and Testing: Accessibility Standard:

• Americans with Disabilities Act (ADA); fixed ADA-compliant levers

Durability:

• Weather resistant

Fire Rating:

• 3-hour UL/ULC fire rating for "A" labeled doors

Warranty:

• 3-year warranty

Functions: Model 8146:

• Combination Entry
• Key Override (not supplied)
• Passag
• Lockout

Model 8148:

• Combination Entry
• Key Override (not supplied)
• Passage
• Lockouk
• Deadbolt
