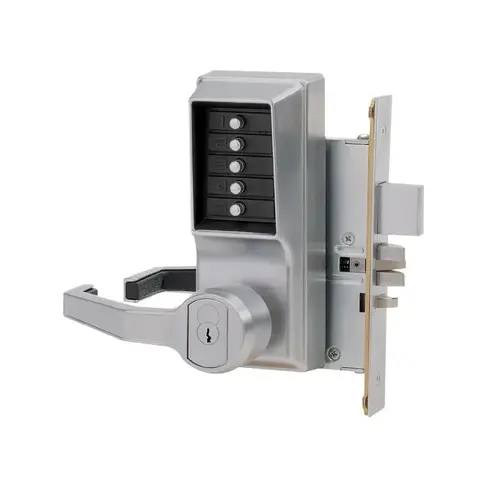

Kaba Access RR8148C-26D-41 Pushbutton Lock Satin Chrome

Item #: RR8148C-26D-41 by Ilco

See reviewsSee reviews
See reviews summary
In Stock

$847.69

/each
SAVE UP TO 84.77
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 31 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Backset: 2¾" (70 mm)
  • Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
  • Key Override Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Color

Satin Chrome

Color Code

626/US26D

Cylinder Type

Corbin Russwin 6-Pin LFIC Core

Lock Platform

Mortise Lock

Package Qty

1

Special Marks

Complies with ADA accessibility guidelines

Base Material

Brass or Bronze

Minimum Stile Width

5 Inch

Manufacturer Parent

DormaKaba

Locking Device

Mortise

Finish Description

Satin Chrome

Function

Combination Entry With Deadbolt

Hand

Right Hand Reverse

Sub-Series

RR8148C-26D-41

ADA Compliant

YES

Handle Type

Lever

Key Override Core Type

LFIC

Programming Method

Keypad

Number of Access Codes

1

Door Thickness

1-3/4" to 2-1/4"

Key Override Brand

Corbin Russwin

Product Type

Access Control

Features

Vandal Resistant; Solid Metal Pushbuttons; Durability; Weather Resistant; No Battery

Warranty

3 year

Included Components

Thumbturn; Key

Finish Family

Satin Chrome

Product Overview

Mortise Combination Lever Lock, Key Override, Passage, Lockout, with Deadbolt, Corbin Russwin 6-Pin LFIC Prep, Less Core, Satin Chrome

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Provides exterior access by combination, while allowing free egress.
