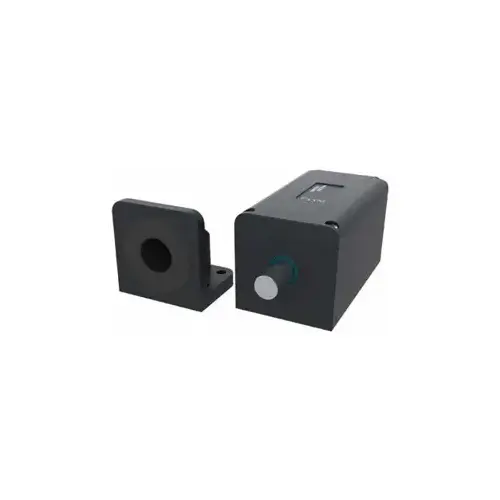

RCI YG80 Electric Deadbolt 12/24VDC Selectable Fail Safe/Fail Secure Modes, for Gates and Roll-Up Doors
Item #: YG80 by Rutherford Controls Int'l Corp
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Function
Electric Door Lock
ADA Compliant
No
Product Type
Electronic Deadbolt
Series
YG Series
Alternate Part Number-1
178580
Voltage
12 to 24 VDC
Application
Securing Gates; Roll-Up Doors; Shipping Containers; Any Other Large Door or Entryway
Bolt Diameter
18mm
Current Draw
Standby: 50 mA at 12V; 40 mA at 24V; 1.6 A at 24V with heater on; Maximum: 1 A at 12V; 0.5 A at 24V; 2 A at 24V with heater on
Product Height
80mm
Product Length
80mm
Product Width
150mm
Included Components
3m Flying Cable
Strike Size
80 mm x 80 mm x 60 mm
Bolt Material
Stainless Steel
Corrosion Resistant
Yes
IP Rating
IP67
Standards
UL294, CSA22.2 No. 205 and UL1034; FCC: Title 47, Part 15, Subparts A and B - Class B Device; ISED (IC): ICES-003 - Class B Device
Static Strength
11,240 lbs.
Indoor or Outdoor Use
Indoor; Outdoor
Dynamic Strength
148 Ft-Lbs.
Body Material
Aluminum
Features
Fully Monitored; Weatherproof; User Configurable; Low Current Consumption; Concealed Mounting Bolts; Built-in Heater for Continued Functionality in Colder Climates; Three User Selectable Control Methods
Manufacturer Parent
DormaKaba
Monitoring Contacts
24 VDC at 0.25 A
Sub-Series
YG80
Product Overview
Low current consumption With the heater disabled, the YG80 will draw as little as 50 mA in standby, and only 1,000 mA in operation at 12VDC. (Heater @24VDC only) 18 mm diameter stainless steel bolt pin and reinforced strike design Holding force of 11,240 lbs
