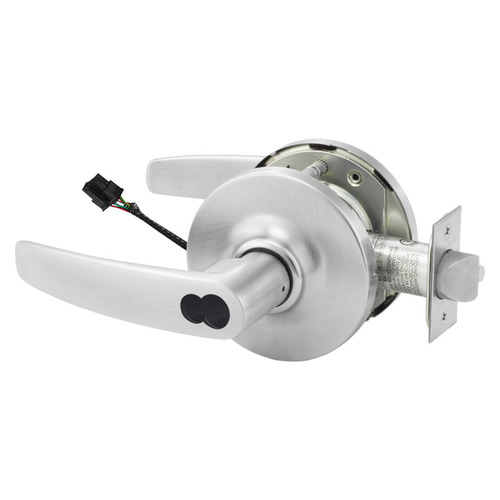

Sargent RX2860-10G70-12V GB 26D Electric Cylindrical Lock Satin Chrome

Item #: RX2860-10G70-12V GB 26D by Sargent

See reviews

In Stock $994.65 /each

SAVE UP TO 99.47

Buying in bulk

Roll over image to zoom in

Sargent RX2860-10G70-12V GB 26D Electric Cylindrical Lock Satin Chrome

Item #: RX2860-10G70-12V GB 26D by Sargent

See reviews See reviews

In Stock $994.65 /each

SAVE UP TO 99.47

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • 10G70: Power off, unlocks outside lever
  • 10G71: Power off, locks outside lever
  • Deadlocking latch
  • Key retracts latch
  • Inside lever always allows egress
  • Voltage requirements: 12VDC or 24VDC Regulated; always specify voltage
  • 250mA at 24VDC or 500mA at 12VDC
  • Provided with ElectroLynx® 8-Pin Connector

Strike Number

808

Package Volume

249.8203125

Latch Number

10-3192

Amp Draw

500mA

Color

Satin Chrome

Case Width

15"

Function

70-Electromechanical Fail Safe

Latch Type

Dead Latch (Guarded)

Case Qty

10

Hand

Non Handed

Grade

Grade 1

Fire Rated

3 Hours {A}

Special Marks

Full size/large format interchangeable core, Fire rated 3 Hours {A}

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Operating Voltage

12VDC

Cylinder Type

Sargent LFIC Prep Less Core

Lock Face Size

2-1/4" x 1-1/8"

Case Length

20.75"

Package Qty

1

Package Height

4.25"

Screws

Combination

Door Thickness

1-3/4" to 2"

Case Height

9"

Package Width

7.125"

Bolt Protection

1/2"

Case Volume

2801.25

Color Code

626/US26D

Strike Type

ASA

Origin

USA

BAA Qualified

Yes

Rose/Escutcheon Design

G - Rose

Strike Height

4-7/8"

Lever/Knob Design

B - Lever

Power

Hard Wired

Package Length

8.25"

Electrified Cylindrical Lock, Fail Safe, 12V, GB Design, LFIC Prep, Less Core, RX Switch, Satin Chrome

The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

The 10 Line is the standard for institutional applications.

A heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
