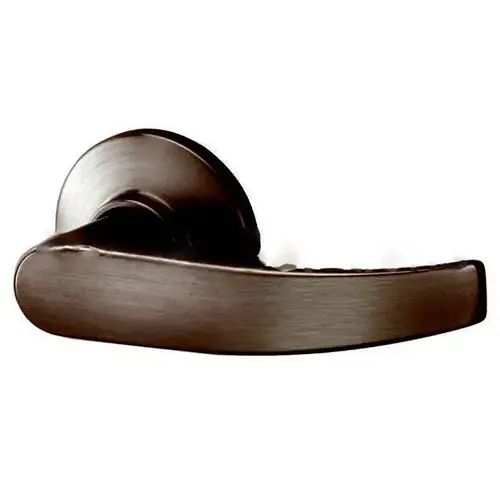

Schlage Commercial S170 NEP 613 Tubular Single Dummy Trim, Grade 2, Neptune, Oil Rubbed Bronze
Item #: S170 NEP 613 by Schlage Commercial
Brand: Schlage Commercial
UPC #: 043156942213
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Single Dummy Trim, Dummy Trim for One Side of Door
- ANSI/BHMA Certified A156.2-2011
- 1-5/8" to 2-1/8" Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Finish
Oil Rubbed Bronze
Function
170-Single Dummy
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Series
S Series
Design
Neptune
Type
Neptune
Product Type
Cylindrical Lock
Handing
Reversible
ADA Approved
False
Door Thickness
1-3/8" to 2"
Rose Diameter
2-9/16 Inch
Finish Description
Oil Rubbed Dark Bronze
ADA Compliant
No
Finish Family
Dark Bronze
Lever Style
NEP-Neptune
Lever Projection
2-1/2 Inch
Rose/Escutcheon Trim
Round Rose
Standards
ANSI A156.2 Series 4000 Grade 2; UL/cUL Listed; FF-H-106C
Chassis Material
Zinc
Function Family
Dummy
Features
Concealed Mounting Screws; Independent Heavy Duty Lever Torsion Springs for Durability and Long Life; Interlocking Chassis and Latchbolt Restricts Chassis from Rotating in Door
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Warranty
3 Year Limited
Manufacturer Parent
Allegion
Lever Length-Inches
4-1/4 Inch
Lever Style Family
Curved Return Lever
Lever Material
Pressure Cast Zinc
Sub-Series
CL_Tubular_Locks_schlage_commercial_4
Substrate Type
Zinc and Steel
Lever Type
NEP - Neptune
Door Handing
Non-Handed
Duty Level
Heavy Duty
Keyed
No
Handle Type
Lever
Lock Type
Cylindrical
Electronic
No
Product Overview
S SeriesTubular Lock
(Formerly Title 19, California State Fire Marshal Standard)
Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.
Specifications: Handing:- Not handed, except Flair design
- 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8” (35 mm-48 mm)
- Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm)
- Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard
- Tubular construction
- Zinc with steel cover
- Brass, chrome plated, 1/2" (13 mm) throw, deadlocking
- Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze
- T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
- Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Interchangeable core available, for Primus Xp cylinder, order locks less cylinder and order Primus Xp cylinder separately. Master keying, grand master keying, and construction keying.
- Commercial: Three-year limited
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass*
- 613 - Oil rubbed bronze
- 619 - Satin nickel
- 625 - Bright chrome plated
- 626 - Satin chrom plated
- *Not avalible on Jupiter or Neptune levers
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
- Meets FF-H-106C
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2" (64mm) or less comply.
- All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act
