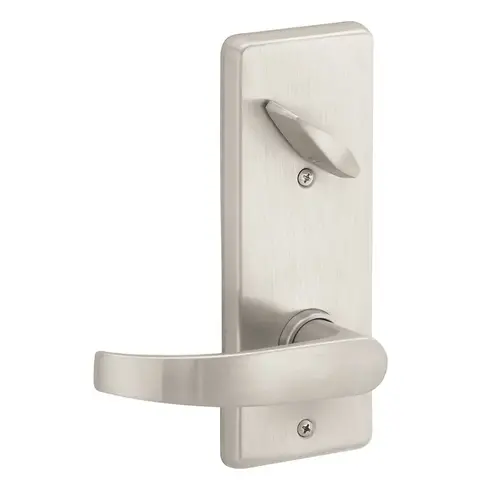

Schlage Commercial S210PD NEP 619 S200 Series Interconnected Entry Single Locking Neptune Lever C Keyway with 16-481 Latch 10-109 Strike Satin Nickel Finish
Item #: S210PD NEP 619 by Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entrance Single Locking - Bolt Operated by Key or Turn Unit from Inside, Bolt Automatically Deadlocks when Fully Thrown, Latch Retracted by Lever from Either Side, Turning Inside Lever Retracts Deadbolt and Latch Simultaneously for Immediate Exit
- S200 Series
- 1-3/8" to 2" Door Range
- Commercial Grade 2
- UL Listed for 3 Hour Fire Door
Thickness
1-3/4 In.
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Keyway
S123
Function
Interconnected Single Locking Entry
Cylinder Type
Conventional Cylinder
ANSI Function
F95 - Interconnected Entrance Single
Bolt Protection
1/2 In. Latch, 1 In. Bolt
Dust Box
Plastic
Latch Backset Dim
Adjustable 2-3/8 In. and 2-3/4 In.
Latch Number
16-481
Latch Type
Combination Dead Latch and Bolt
Lever/Knob Design
NEP - Neptune
Lock Face Size
2-1/4 In. x 1 In.
Package Qty
1
Special Marks
Conventional cylinder
Strike Height
2-3/4 In.
Strike Number
10-094 & 10-001
Strike Type
T-Square Corner
Strike Width
1-1/8 In.
Finish
Satin Nickel
Backset
Adjustable Backset 2-3/8" and 2-3/4"
Strike
Square Deadbolt Strike and T Strike
Design
Neptune
Series
S200 Series
Handing
Reversible
Product Overview
Interconnected Entrance Lock, Single Locking, Neptune, Adjustable, 2-3/8" or 2-3/4" Backset, Satin Nickel
