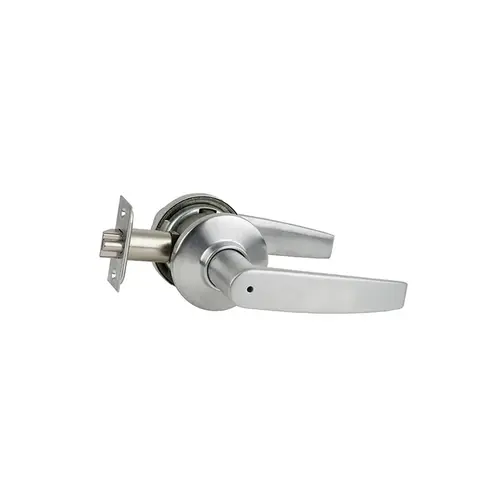

S40D Jupiter Bath/Bedroom Privacy Lock, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial S40D JUP 626 S40D Jupiter Bath/Bedroom Privacy Lock, Satin Chrome

Item #: S40D JUP 626 by Schlage Commercial

UPC #: 043156938551

See reviewsSee reviews
In Stock

$297.68

/each
SAVE UP TO 29.77

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thickness

1-3/4 In.

Strike Number

10-001

Latch Number

16-203

Color

Satin Chrome

Function

40-Privacy

Latch Type

Dead Latch

ANSI Function

F76

Dust Box

Plastic

Strike Width

1-1/8 In.

Latch Backset Dim

Adjustable 2-3/8 In. and 2-3/4 In.

Lock Face Size

2-1/4 In. x 1 In.

Package Qty

1

Bolt Protection

1/2 In.

Color Code

626/US26D

Strike Type

T-Strike

Strike Height

2-3/4 In.

Lever/Knob Design

JUP - Jupiter

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 2

Backset

2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner

Strike

T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner

Finish Description

Satin Chrome

Lever Style

JUP-Jupiter

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

ADA Approved

False

Warranty

3 Year Limited

Door Thickness

1-3/8" To 1-7/8"

Rose Diameter

2-9/16 Inch

Latch Throw

1/2 Inch

ADA Compliant

No

Finish Family

Satin Chrome

Strike Size

1-1/8" x 2-3/4" x 3/32"

Lever Projection

2-1/2 Inch

Standards

ANSI A156.2 Series 4000 Grade 2; UL/cUL Listed; FF-H-106C

Function Description

Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.

Front Size

1" x 2-1/4"

Chassis Material

Zinc

Function Family

Privacy/Bedroom/Bathroom

Features

Concealed Mounting Screws; Independent Heavy Duty Lever Torsion Springs for Durability and Long Life; Interlocking Chassis and Latchbolt Restricts Chassis from Rotating in Door

Series

S Series

Manufacturer Parent

Allegion

Lever Length-Inches

4-1/4 Inch

Latch Corner

Square

Lever Style Family

Straight Lever

Lever Material

Pressure Cast Zinc

Sub-Series

CL_Tubular_Locks_schlage_commercial_12

Product Overview
S SeriesTubular Lock

Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.

Specifications: Handing:
  • Not handed, except Flair design
Door thickness:
  • 1 3/8" to 2" (35 mm-51 mm) except S40D: 1 3/8" to 1 7/8” (35 mm-48 mm)
Backset:
  • Universal backset latches standard, fit either 2 3/8" (60 mm) or 2 3/4" (70 mm)
Fronts:
  • Steel. 1" x 2 1/4" (25 mm x 57 mm) square corner, beveled, for 2 3/4" backset standard
Lock chassis:
  • Tubular construction
  • Zinc with steel cover
Latch bolt:
  • Brass, chrome plated, 1/2" (13 mm) throw, deadlocking
Exposed trim:
  • Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze
Strike:
  • T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
Cylinder and keys:
  • Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
Keying options:
  • Interchangeable core available, for Primus Xp cylinder, order locks less cylinder and order Primus Xp cylinder separately. Master keying, grand master keying, and construction keying.
Warranty:
  • Commercial: Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass*
  • 613 - Oil rubbed bronze
  • 619 - Satin nickel
  • 625 - Bright chrome plated
  • 626 - Satin chrom plated
  • *Not avalible on Jupiter or Neptune levers
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64mm) or less comply.
UL / cUL:
  • All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act
