The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

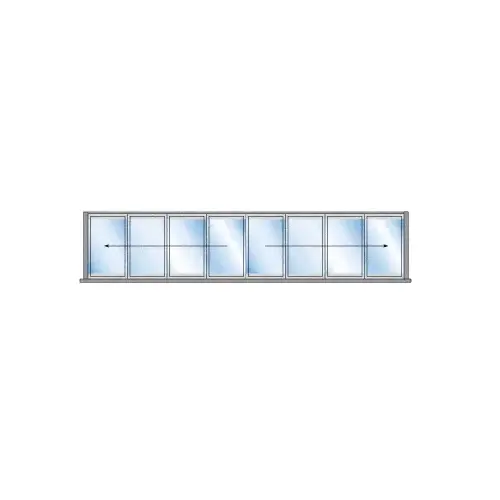

CRL M5B44F1WHClick To Copy S55 Monterey 4+4 Bi-Fold Bi-Part Interior Swing with Flush Sill White Powder Coat
Item #: M5B44F1WH by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy to Operate Panels Open and Close Effortlessly
- Fully Assembled, Ready for Glazing
- New Construction or Retrofit, Commercial and Residential
- Thermally Broken Option Available
- Weather Resistant, Designed for Interior/Exterior Use
- White, Black, and Wood Grain Powder Coat, Satin and Black Bronze Anodized are Standard, with Custom Colors Available
Swing
Inswing
Type
4+4 Bi-Fold
Finish
Gloss White
2 Point Lever Latch
Yes
Series
S55
Finish/Color
Gloss White
Flush Sill
Yes
Panel Stile Width (Inches)
2-3/8
Panel Thickness
2-1/8
Top Hung
Yes
Door Type
Framed Bi-Folding Doors
Minimum Overall Opening Width (Inches)
136
Glazing Thickness
3/4, 1, 1/4, 3/8, 1/2
Configuration
4+4 Biparting
Frame Depth
2-5/16
Glazing Type
Tempered Insulated,Tempered Monolithic,Tempered Laminated
Maximum Height Interior Application (Inches)
120
Maximum Panel Weight (Pounds)
135
Product Overview
The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
.
