The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

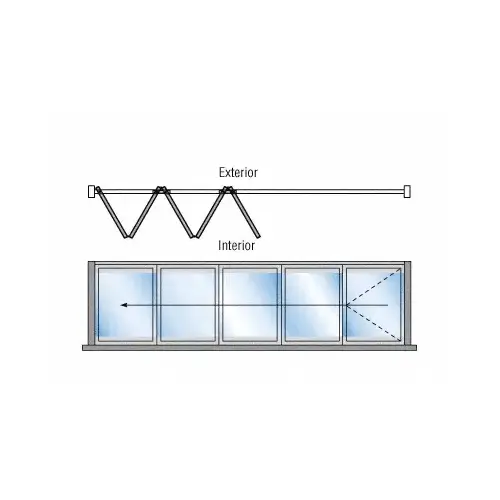

CRL M7A50R1WHL S80 Monterey Thermally Broken Bi-Fold 5 Panel Left Hand Interior Swing with Raised Sill and Exterior Lever Lock White Powder Coat
Item #: M7A50R1WHL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Easy to Operate Panels Open and Close Effortlessly
- Fully Assembled, Ready for Glazing
- New Construction or Retrofit, Commercial and Residential
- Weather Resistant, Designed for Interior Use
- White, Black, and Wood Grain Powder Coat, Satin and Black Bronze Anodized are Standard, with Custom Colors Available
Swing
Inswing
Type
5 Panel
Style
Exterior Lever Lock
Finish
Gloss White
Maximum Panel Weight (Pounds)
100
Glazing Type
Tempered Insulated,Tempered Monolithic,Tempered Laminated
Maximum Height Exterior Application (Inches)
108
Acoustic Rating
32
Raised Sill
Yes
Frame Depth
2-5/16
Configuration
5 Panel Left Hand
Thermally Broken
Yes
Glazing Thickness
1, 1-1/4
Minimum Overall Opening Width (Inches)
88
3 Point Keyed Lock
Yes
Door Type
Framed Bi-Folding Doors
Top Hung
Yes
STC Tested
Yes
Panel Thickness
2-7/8
Panel Stile Width (Inches)
2-3/8
Finish/Color
Gloss White
Series
S80
Maximum Height Exterior Application
108 in. (2743 mm)
Maximum Panel Weight
100 lbs. (45.4 kg)
Minimum Overall Opening Width
88 in. (2235 mm)
Panel Stile Width
2-3/8 in. (60 mm)
Product Overview
The Monterey Bi-Folding Glass Wall System allows you to bring in the outdoors while providing resistance to undesirable weather conditions. Countless options are available to create large living spaces that seamlessly transition outdoors to indoors. Our precision engineered components provide a system that slides smoothly with minimal effort while supporting multiple panels in a single opening. The Monterey Series provides security with two point interior lever latch as standard with three point keyed locks available on some configurations. CRL Monterey Bi-Fold Sliding Door Systems are a contemporary way to maximize the space available in residential or commercial properties, while at the same time creating stunning areas with brilliant transparency.
Our Monterey Series Bi-Folding Sliding Door System can accommodate door configurations ranging from 2 to 26 panels and allows them to be stacked with minimum effort to one or both sides, leaving an enormous wide open space. A pivoting door, that will also fold up with the entire system, can be incorporated into many configurations. Design options are virtually limitless. The sturdy, yet slim frame construction allows for more glass and less metal. The Monterey Series is designed for 1/4" to 1-1/4" (6 to 32 mm) glazing thickness, and the frames are available in white, black, and wood grain powder coated, satin and black bronze anodized finishes as standard with custom finishes also available.
.
