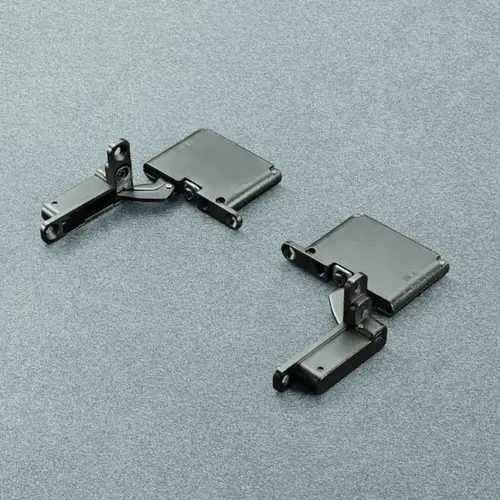

Salice HCEL6XE6XXV AIR Soft-Close Hinges Titanium
Item #: HCEL6XE6XXV by Salice
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Titanium
Load Capacity
55.1 lb
Cabinet Type
Frameless
Hinge Opening Angle
+105°
Closing Mechanism
Soft-Closing
Production Time
Stock
Product Overview
Air is an innovative and functional concealed hinge system, characterized by sophisticated design, compactness, and very high performance qualities. Air is fully adjustable in three directions and it can be used with both wood doors and aluminum framed doors. Whether used on small light doors or tall heavy doors, two hinges are all that is required to ensure a smooth and worry free action.
Advantages And Benefits
The innovative and revolutionary hinge.
Despite its compactness and small size, Air delivers full functionality to furniture manufacturers.
Once inserted into the top and bottom of the cabinet, the door and is practically invisible. Its small size means that applications for Air are numerous: kitchens, bathrooms, living room and bedroom furniture, and display cabinets.
- The hinge is characterized by its compactness and small size; it incorporates the push self-opening system for handle-less doors.
- It is fitted to the top and bottom panel of the cabinet.
Application
- For min. 3/4 in (18 mm) thick wood doors and aluminum-framed doors
- Max. dimensions of the door: height 82 11/16 in (2100 mm), width 23 19/32 (600 mm)
- 21/32 in (16.5 mm) deep metal cup
- Possible drilling distance on the door (K): from 1/8 in (3 mm) to 1/4 in (6 mm) for wood doors
- Aluminum doors: door edge bore drilling (K): 5/32 in (4 mm)
Advantages And Benefits
The innovative and revolutionary hinge.
Despite its compactness and small size, Air delivers full functionality to furniture manufacturers.
Once inserted into the top and bottom of the cabinet, the door and is practically invisible. Its small size means that applications for Air are numerous: kitchens, bathrooms, living room and bedroom furniture, and display cabinets.
- The hinge is characterized by its compactness and small size; it incorporates the push self-opening system for handle-less doors.
- It is fitted to the top and bottom panel of the cabinet.
Application
- For min. 3/4 in (18 mm) thick wood doors and aluminum-framed doors
- Max. dimensions of the door: height 82 11/16 in (2100 mm), width 23 19/32 (600 mm)
- 21/32 in (16.5 mm) deep metal cup
- Possible drilling distance on the door (K): from 1/8 in (3 mm) to 1/4 in (6 mm) for wood doors
- Aluminum doors: door edge bore drilling (K): 5/32 in (4 mm)
