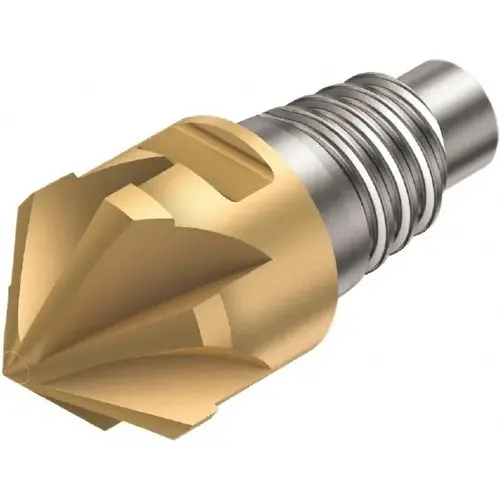

Sandvik Coromant 5722432 Chamfer Replaceable Milling Tip: A31616CM80006260G 1030 1030, Carbide TiAlN

Item #: 5722432 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$296.87

/each
SAVE UP TO 29.69
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Vendor Drop Ship

N

Length Of Cut (Decimal Inch - 4 Decimals)

0.3031

Cutting Width (Decimal Inch)

0.6250

Maximum Depth of Cut (Decimal Inch)

0.3031

Milling Tip Type

Chamfer

Material Grade

P30

Helix Angle

0

Coating/Finish

TiAlN

UNSPSC Code

23291601

Manufacturers Catalog Number

5722432

Insert Hand

Right Hand

Manufacturer Grade

1030

Number of Flutes

8

Lead Angle

60

Chipbreaker

Straight

Standards

ANSI

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0000

Milling Tip Full Description

A316-16CM800-06260G 1030

Overall Length (Decimal Inch)

0.7362

Milling Tip Style

A316..CM

Coolant Through

No

Functional Length (Decimal Inch)

0.7362

Included Angle Degree

90

Chamfer Angle

60.000

Series

316

Primary Workpiece Material Code

P

Tool Material

Carbide

Product Overview
Chamfer Replaceable Milling Tip: A31616CM80006260G 1030 1030, Carbide 8 Flutes, 7.7 mm Max Depth of Cut, Series CoroMill 316
