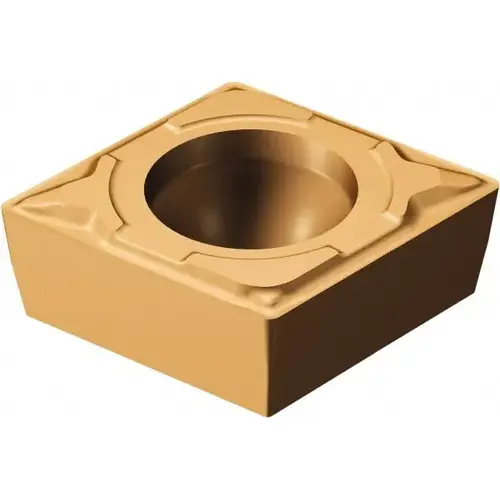

Sandvik Coromant 5725911-XCP10 Turning Insert: CPMT21.50-MF 1125, Solid Carbide - pack of 10
Item #: 5725911-XCP10 by Sandvik Coromant
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Number of Cutting Edges
2
Insert Thickness
2.38
Included Angle
80
Insert Material
Carbide
Series
CoroTurn 111
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0079
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.2460
Insert Thickness (Decimal Inch)
0.0938
Insert Thickness (Inch)
3/32
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.2500
Insert Length (mm)
6.25
Insert Shape
Diamond
Clearance Code
P
Insert Shape Code
C
Chip Breaker
MF
Secondary Workpiece Material Code
M
Insert Style
CPMT
Insert Size Code
21.50
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1102
Relief Angle
11
Inscribed Circle (Inch)
1/4
Hole Diameter (Mm) ( - 0 Decimals)
2.80
Manufacturer Grade
1125
Length Range (Decimal Inch)
0.0000 - 0.3000
Inscribed Circle (mm)
6.35
Corner Radius (mm)
0.20
Iso Code
CPMT 06 02 02-MF 1125
Product Overview
Turning Insert: CPMT21.50-MF 1125, Solid Carbide TiAlN & AlCr2O3 Coated, Neutral, 0.246" Long, 1/4" Inscribed Circle, 0.2 mm Corner Radius, 80 degree Diamond, Series CoroTurn 111
