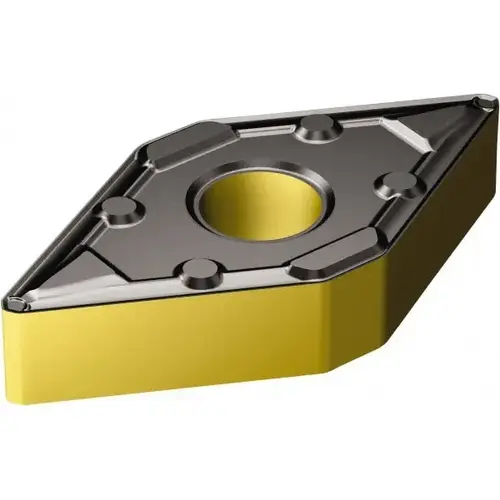

Sandvik Coromant 5731349 Turning Insert: DNMX432-WF 1515, Solid Carbide TiCN

Item #: 5731349 by Sandvik Coromant

Brand: Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$38.64

/each
SAVE UP TO 3.86
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Insert Thickness

4.76

Included Angle

55

Insert Material

Carbide

Series

T-Max P

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

DNMX 15 04 08-WF 1515

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (mm - 2 Decimals)

14.70

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5789

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.5789

Multi-use Tool

Yes

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

14.70

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Clearance Code

N

Full Radius

Yes

Insert Shape Code

D

Chip Breaker

X

Insert Style

DNMX

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1875

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

14.70

Manufacturer Grade

1515

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

DNMX 15 04 08-WF 1515

Product Overview
Turning Insert: DNMX432-WF 1515, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 0.5789" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Parallelogram, Series T-Max P
