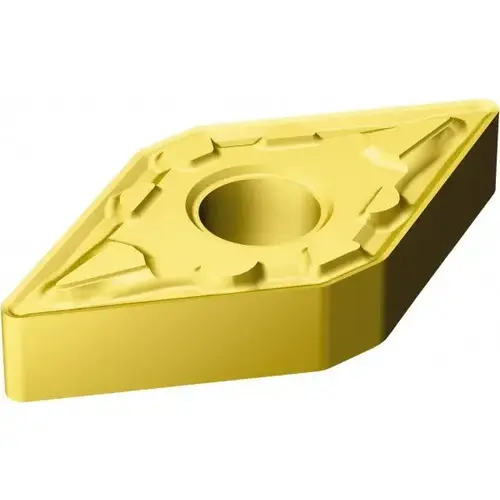

Turning Insert: DNMG442-MM 2025, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sandvik Coromant 5731715Click To Copy Turning Insert: DNMG442-MM 2025, Solid Carbide

Item #: 5731715 by Sandvik Coromant

See reviewsSee reviews
See reviews summary
In Stock

$38.16

/each
SAVE UP TO 3.82

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

4

Insert Thickness

6.35

Included Angle

55

Insert Material

Carbide

Series

T-Max P

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5789

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

14.70

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

D

Chip Breaker

MM

Insert Style

DNMG

Insert Size Code

442

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Manufacturer Grade

2025

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.79

Iso Code

DNMG 15 06 08-MM 2025

Product Overview
Turning Insert: DNMG442-MM 2025, Solid Carbide TiCN, AI2O3 & TiN Coated, Neutral, 0.5789" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series T-Max P
